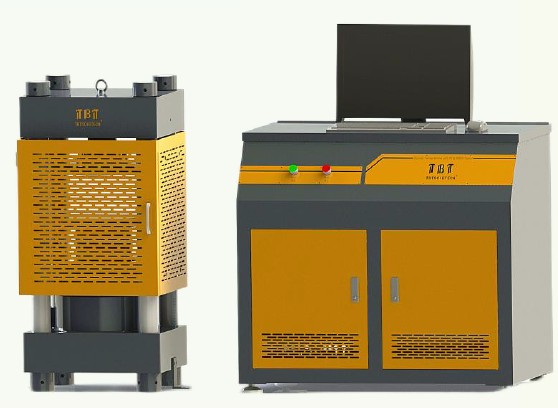

Model : TBTCTM-2000AG
Capacity : 2000KN max.
Measuring range : 0~2000
Relative error : ±1%
Pressure plate size : D295*T32mm (round) upper plate
D295*T45mm (round) lower plate
Distance Piece : D200*T50mm *3pcs
D200*T75mm *1pc
Maximum distance between upper & lower plate : 330mm (380mm)
Piston stroke : 50mm (100mm)
Loading speed Around : 0.2~10KN/s
Power supply : 220VAC 50HZ 750W
Dimensions Around : 900×400×1000 (L*W*H)
Net weight Around : 780kg
Standard package
1 Main Unit 1pc
2 Controlling Unit 1pc
3 PC 1pc
4 Keyboard and Mouse 1pc
5 Laser Printer 1pc
6 Distance Piece 1set
