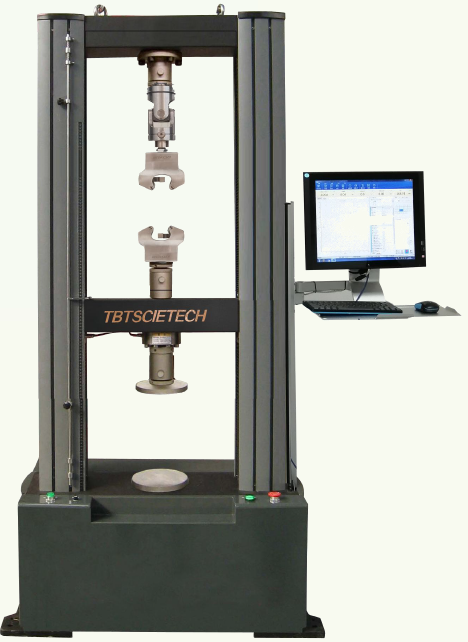

TBT TBTWDW-50H Electronic Universal Testing Machine with Touch Screen

Max. load capacity: 50KN

1 Grade class Class: 0.5

2 Measuring range of load 1%-100%F.S

4 Load resolution 1/±300000

5 Measuring range of deformation 0.2%-100%FS

6 Relative error of indication Within ±1.0%

7 Adjustable Rate 1-15000N/Sec

8 Displacement speed 0.005-500mm/min

9 Displacement resolution 0.001mm

10 Span between columns 400mm

11 Stroke of crosshead 600mm

12 Motor power 750W

13 Control method Automatically control by touch screen

controller

14 Voltage 1ph, 220V/50/60Hz

15 Control mode Touch screen
