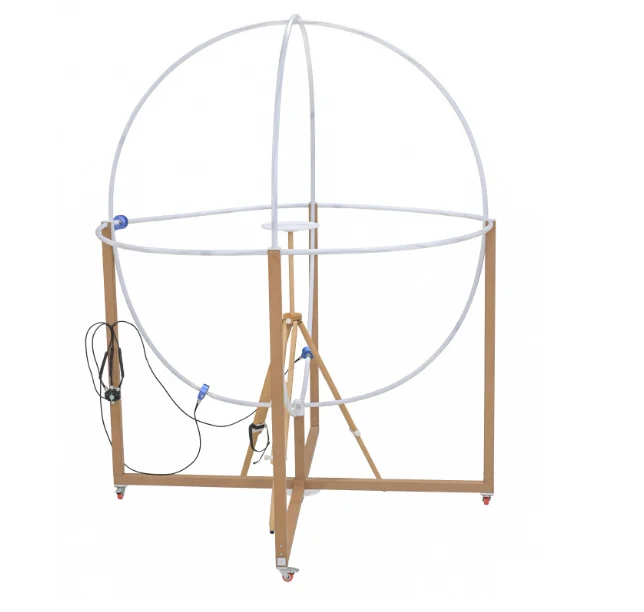

Type: Large Loop Antenna (triple loop)
Frequency range: 9 kHz– 30 MHz
Standards: CISPR 16-1-4, CISPR 15
Loops: 3 perpendicular loops with 2m diameter
Loop construction: RG223U sections with over-molded slits inside PEX tube
RF transducer transfer impedance: typical 0 dBΩ ; 1V/A @ 9kHz to 30 MHz
RF transducer output connector: N-female, 50 Ω
Antenna validation factor: within ±2 dB compared to the theoretical validation factor for 2m diameter LLA given in CISPR 16-1-4
Effective antenna correction factor: 0 dB
CM resistance of the ferrite absorbers: > 200 Ω @ 10 MHz
Mechanical Dimensions: L x W x H: 2062 mm x 2062 mm x 2547 mm (81.2” x 81.2” x 100”)
Weight: 25 kg (55.12 lbs)
