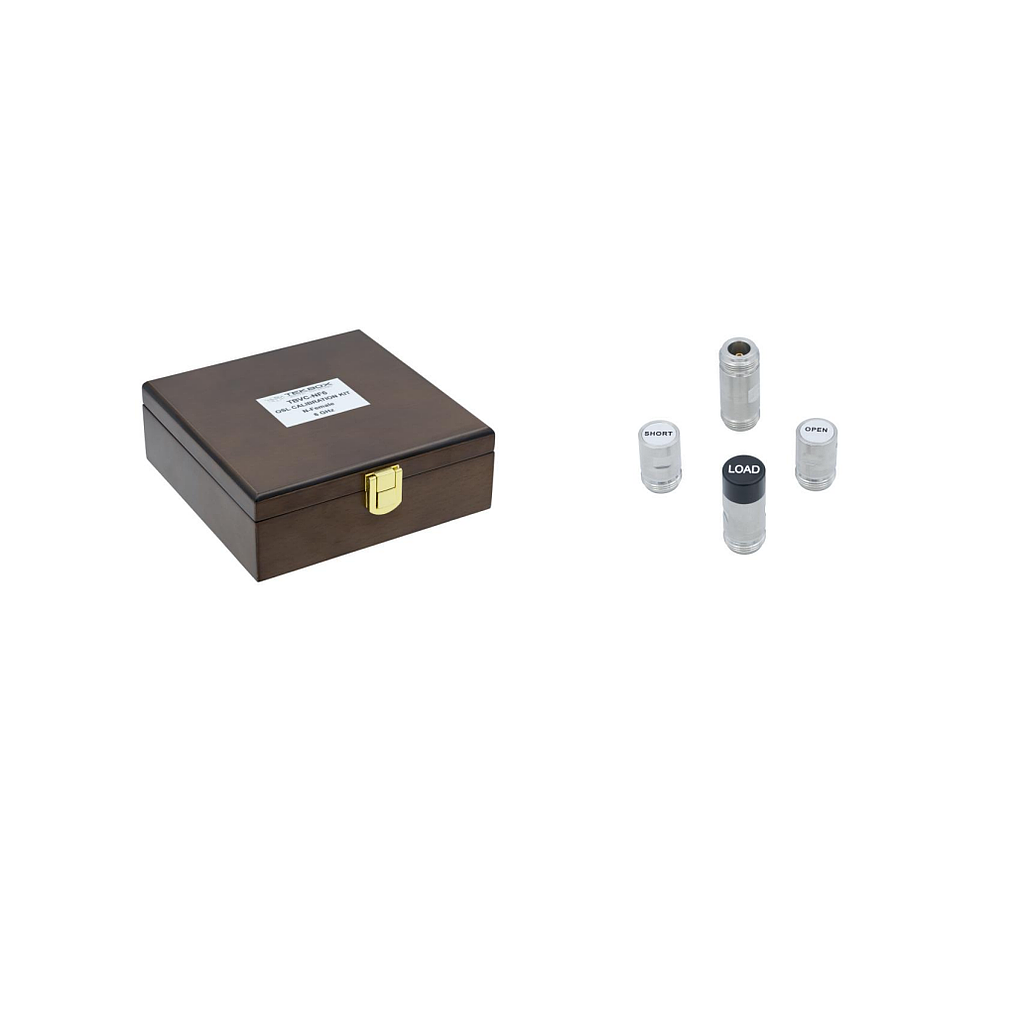

LOAD
Connector: N-Female
Impedance: 50 Ω
Return loss: > 35 dB
THROUGH
Connector: N-Female
Impedance: 50 Ω
Loss: 2 GΩ/s
Delay: 80.375 ps
SHORT
Connector: N-Female
Impedance: 50 Ω
Delay: 0 ps
Loss: 2.88 GΩ/s
L0: 1.19 pH
L1: –8.9e-22 H/Hz
L2: 1.4e-31 H/Hz²
L3: 1.6e-42 H/Hz³
OPEN
Connector: N-Female
Impedance: 50 Ω
Delay: 6.810 ps
Loss: 979.28 GΩ/s
C0: 4.96 fF
C1: –2.274e-24 F/Hz
C2: 8.78e-35 F/Hz²
C3: 5.54e-45 F/Hz³
Frequency range: DC – 6 GHz
Box dimensions: 145 mm × 145 mm × 55 mm
Weight: 475 g
