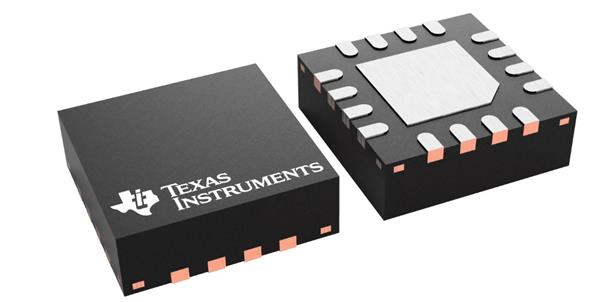

Texas Instruments PGA855RGTR Instrumentation Amplifiers Low-noise wide-band width fully-differe

Gain V/V: 1 V/V

Shutdown: No Shutdown

Gain Error: 0.03 %

Input Type: Differential

3 dB Bandwidth: 10 MHz

Amplifier Type: Variable Gain Amplifiers

Mounting Style: SMD/SMT

SR - Slew Rate: 35 V/us

Development Kit: PGA855EVM

Number of Channels: 1 Channel

Supply Voltage - Max: 36 V

Supply Voltage - Min: 8 V

Ib - Input Bias Current: 500 pA

Ios - Input Offset Current: 500 pA

Vos - Input Offset Voltage: 70 uV

GBP - Gain Bandwidth Product: 16 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 0.3 pA/sqrt Hz

en - Input Voltage Noise Density: 168 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 64 dB

PSRR - Power Supply Rejection Ratio: 140 dB
