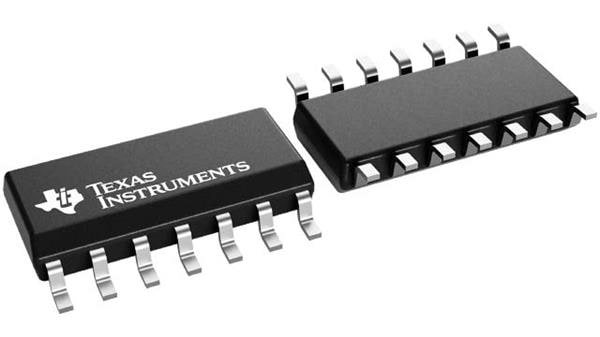

Texas Instruments THVD2412VDR Fault-Protected 3-V to 5.5-V 1-Mbps full-duplex RS-485

Duplex: Full Duplex

Function: Transceiver

Shutdown: Shutdown

Data Rate: 250 kb/s, 1 Mb/s

Interface Type: Digital

Mounting Style: SMD/SMT

Output Current: 250 mA

Number of Drivers: 1 Driver

Number of Receivers: 1 Receiver

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 3 V

Pd - Power Dissipation: 220 mW, 280 mW

Propagation Delay Time: 50 ns, 185 ns, 540 ns, 800 ns

Operating Supply Current: 3 mA, 3.5 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
