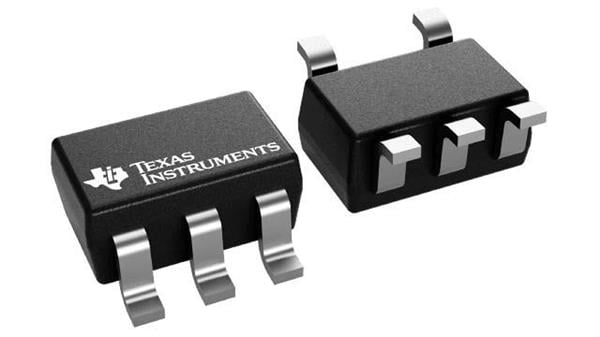

Texas Instruments TLV333IDCKRG4 Operational Amplifiers Single, 350-kHz, low-noise, RRIO, CMOS operational amplifier for cost-sensitive systems

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Technology: CMOS

Output Type: Rail-to-Rail

Amplifier Type: Differential

Mounting Style: SMD/SMT

SR - Slew Rate: 160 mV/us

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.8 V

Ib - Input Bias Current: 70 pA

Operating Supply Current: 17 uA

Ios - Input Offset Current: 140 pA

Output Current per Channel: 5 mA

Vos - Input Offset Voltage: 2 uV

GBP - Gain Bandwidth Product: 350 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 100 fA/sqrt Hz

en - Input Voltage Noise Density: 55 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 102 dB
