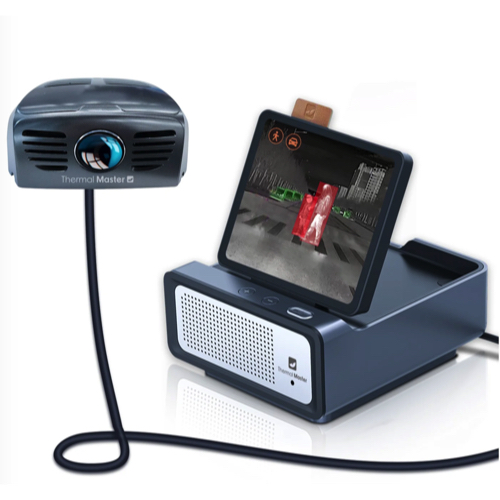

Thermal Master NV300 Basic Thermal Imaging Night Vision (300m; 256~512, 25°× 19°)

Night Vision Distance: 328 Yards (300m)

Response Time: 0.1s

Collision Warning: AI {Det} Life Collision Warning

AI Recognition: Automatic recognition of pedestrians, vehicles, animals, vehicle distance, and start-up

IR Resolution: 256 to 512 IR Resolution

HD Super Resolution: Supported

Infrared Chips: Thermal Master high performance detector

Operating Temperature: -4℉~176℉ (-20-80℃), suitable for extremely cold, hot, windy, and sandy weather

IP69K: Resistant to 80°C high temp and high pressure spraying, 100% dust proof

Razor X: Supported

Automatic Defrost: Supported

Mounting Method: 5 Min quick pre-assembly of roof

Palette: 9 thermal imaging palettes

Storage: Built-in 1GB RAM + 8GB ROM, expandable with a 64GB TF card

WiFi: Supported

Screen Brightness: Automatic environmental sensing, adaptive screen brightness

Supported Vehicle Models: Car/Pickup/Truck/Bus/School Bus/RV

AI Computing Ability: 4Tops

AI Algorithm: Exclusive AI-PILOT intelligent algorithm

Warning Sensitivity: Three options: High, Middle, and Low

Warning Type: Two options: Sound and Image

Frame Rate: 25Hz

FOV: 25°× 19°

Automotive Grade Authentication: IATF16949

Power Supply: DC 12V and 24V (car charge)

Power Consumption: ≤6W (Standard) / ≤9W (With automatic defrost)

Video Interface: GMSL

Physical Interface: FAKRA

Dimensions (Host): W: 95mm, L: 111mm, H: 51mm

Dimensions (Camera): W: 107mm, L: 128mm, H: 48mm

Weight: 305g (Host) / 198g (Camera)
