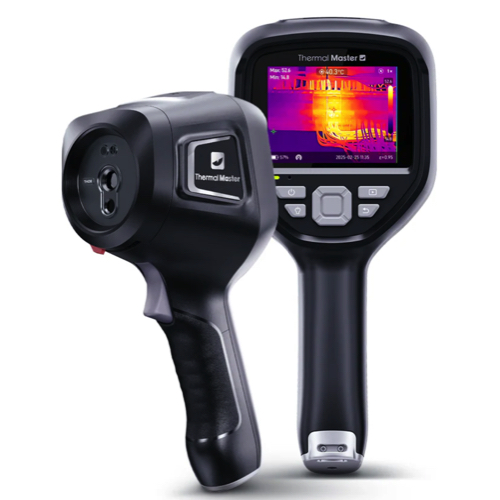

Thermal Master THOR002 Thor, Expert Handheld Thermal Imager (-20~550°C, ±2℃; 256×192)

Temperature Range: -20~550°C

Accuracy: ±2℃ or ±2℃ of the reading

IR Resolution: 256×192

Super IR Resolution: 512×384

Macro Lens: ×

Lens Focal Length: 4.3mm

Digital Zoom: 2/4×

Display: 3.5 inch IPS (640x480)

Spot Meter: Center spot/Max/Min/3 Custom Spots/Temperature difference

NETD/Thermal Sensitivity: ＜40mk

Image Mode: Fusion, IR (default), PIP, Visual

Digital Camera: 2MP

Wireless: ✔

PC-based Analysis Software: Supports 13 languages (English by default)

APP: ✔

Laser Indicator: ✔

Microphone: ✔

Flash Shield: Lens cap for protection

Alloy Metal Base: ✔

TruePix: ✔

Razor X: ✔

Image Frequency: 25Hz

FOV: 40°×30°

IFOV: 2.79mrad

Pixel Pitch: 12μm

Focus Mode: Fixed focus

Min Focus Distance: 30cm

Screen Refresh Rate: 60Hz

Fast Charge: 18W

Battery: 5000mAh

Charging Time: 4h

Operating Time: 8h
