THORLABS CM502 Birefringence Imaging Microscope (Motorized Objective Arm) | EMIN.VN

Optical equipment
THORLABS CM502 Birefringence Imaging Microscope (Motorized Objective Arm)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

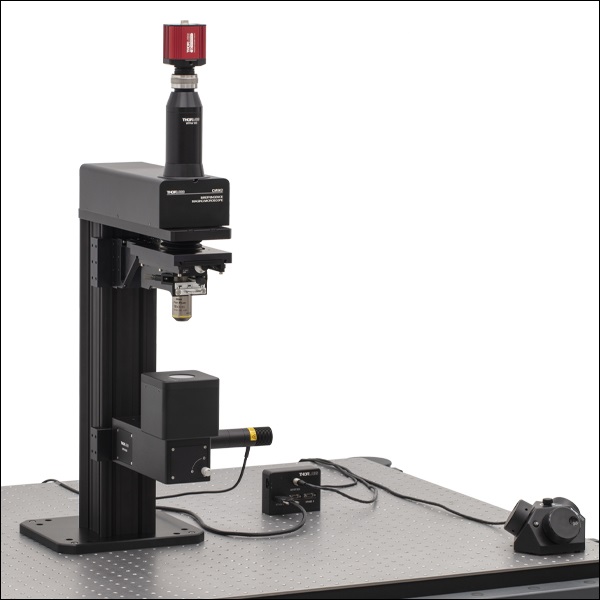

Product image

THORLABS CM502 Birefringence Imaging Microscope (Motorized Objective Arm)

ManufacturerTHORLABS

ModelCM502

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Light Source Wavelength(a): 632.8 nm ± 1 nmb

Microscope: Cerna® Series Microscope

Measurement Range:

- Retardance:

+Standard Retardance Range: 0 nm to 316 nm

+Low Retardance Range: 0 nm to 100 nm

- Azimuth: ±90°

Measurement Accuracy:

- Retardance

+ Standard Retardance Range: ±10 nm

+ Low Retardance Range: ±1 nm

- Azimuth:

+ Standard Retardance Range: ±3°

+ Low Retardance Range: ±1°

Measurement Rate: <20 s (Based on Default Camera Settings)

Field of View(c): 0.84 mm x 0.71 mm

Spatial Resolution(c): 1.055 μm

Interfaces: USB 2.0 and USB 3.0

Imager Resolution : 2448 x 2048 Pixels (H x V)

Dimensions (D x W x H): 469.6 mm x 354.1 mm x 836.3 mm (18.5" x 13.9" x 32.9")

Weight: 22.4 kg (49.4 lbs)

Operating Temperature: 0°C to 40°C

Storage Temperature: -15°C to 65°C

(a) Wavelength is customizable upon request. Contact Tech Support for details.

(b) The M625L4 LED is used in combination with a FL632.8-1 filter to provide a 633 nm light source.

(c) Field of view and spatial resolution are based on the standard configuration that includes a 10X objective (Item # N10X-PF).

MANUAL:
