Operational Modes: Cable Test, Resistance, Capacitance, IR Impedance, No Loss of Current Kennelly’s Two & Three Current Test, Schaefer Test Method, Open Circuit Short Circuit, Fixed Load, Power Feeding.
Input Requirements: 3 Phase 20 Amps, Sea Earth, System Safety Earth
Power Output Options:
Single Module 10Kv, at Max 1.2 Amps 20Kv at Max 0.6 Amps
Dual Module 10Kv at Max 2.4 Amps 20Kv at Max 1.2 Amps
Triple Module 10Kv at Max 3.6 Amps 20Kv at Max 1.8 Amps
Resistance measurement in ranges:
1-9.9R
10 to 99.9R
100 to 999.9R
1K to 10K
10K to 100K
Resistance Accuracy: 1%
Capacitance Measurement:
0 to 1uF
1 to 10uF
10 to 100uf
100 to 1mF
1mF to 10mF
10mF to 100mF
Capacitance Accuracy: 2%
Insulation Resistance: 10x104 to 10x107
Voltage Measurement: 10v to 20Kv
Current Measurement: 10uA to 3.6A

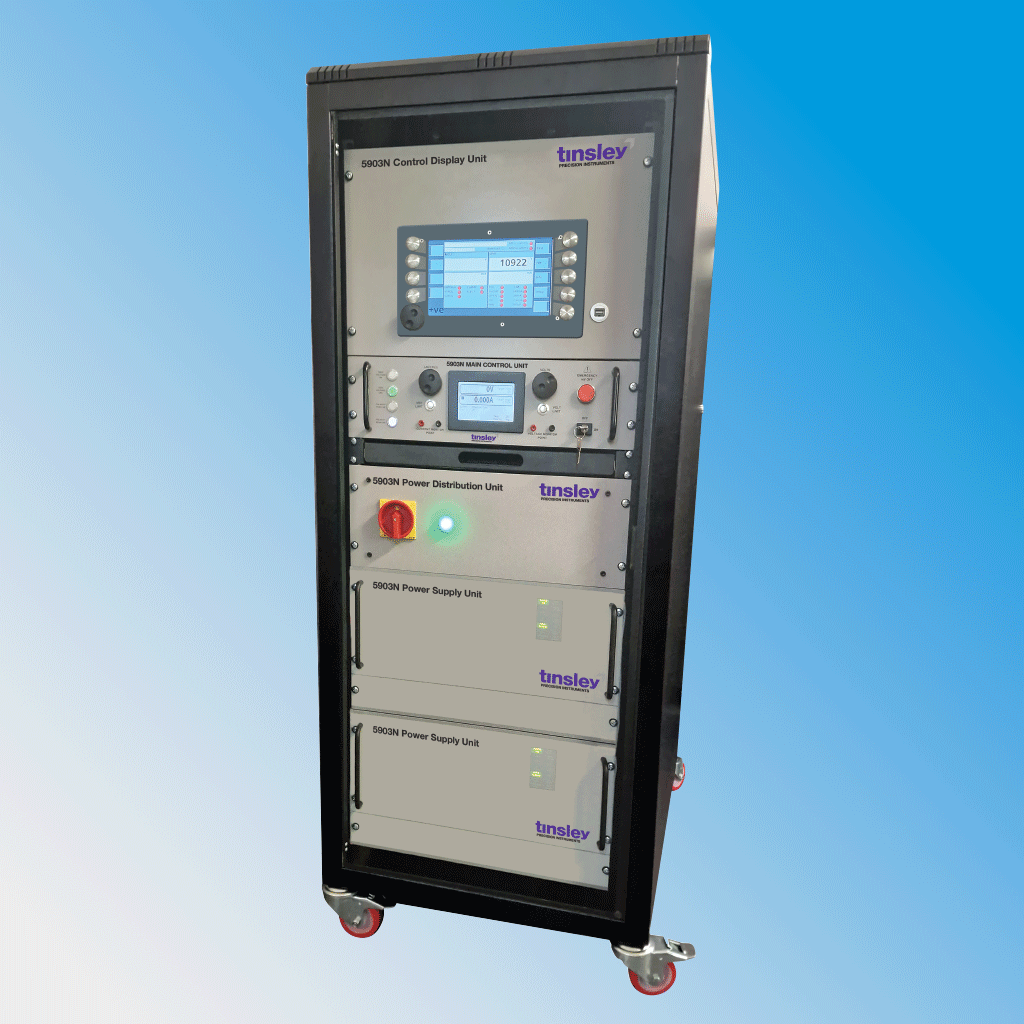

Single Unit Variant Size: 19” Wide, 82cm Deep, 160cm Weight: 95kgs for single Unit
Dual Unit Variant Size: 19” Wide, 82cm Deep, 160cm Weight: 115kgs
Triple Unit Variant: TBA
* Subject to change without notification.
