Working pressure: 700bar
Cylinder Capacity @700 bar (Ton): 100
Cylinder Capacity @700 bar - Push (KN): 1002
Cylinder Capacity @700 bar - Pull (KN): 557
Stroke (mm): 200
Effective area push (cm²): 143.1
Effective area pull (cm²): 79.5
Oil capacity push (cm³): 2863
Oil capacity pull (cm³): 1590

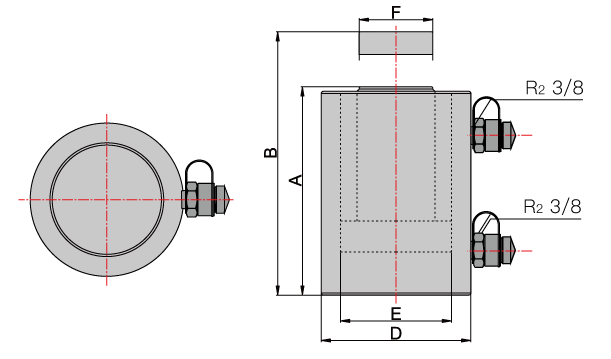

Closed height A (mm): 389
Extended height B (mm): 589
Outside Dia. D (mm): 175
Inside Dia. E (mm): 135
Piston Rod Dia. F (mm): 90
G.W (kg): 60
Handle: No
Recommended pump: HHB-630B

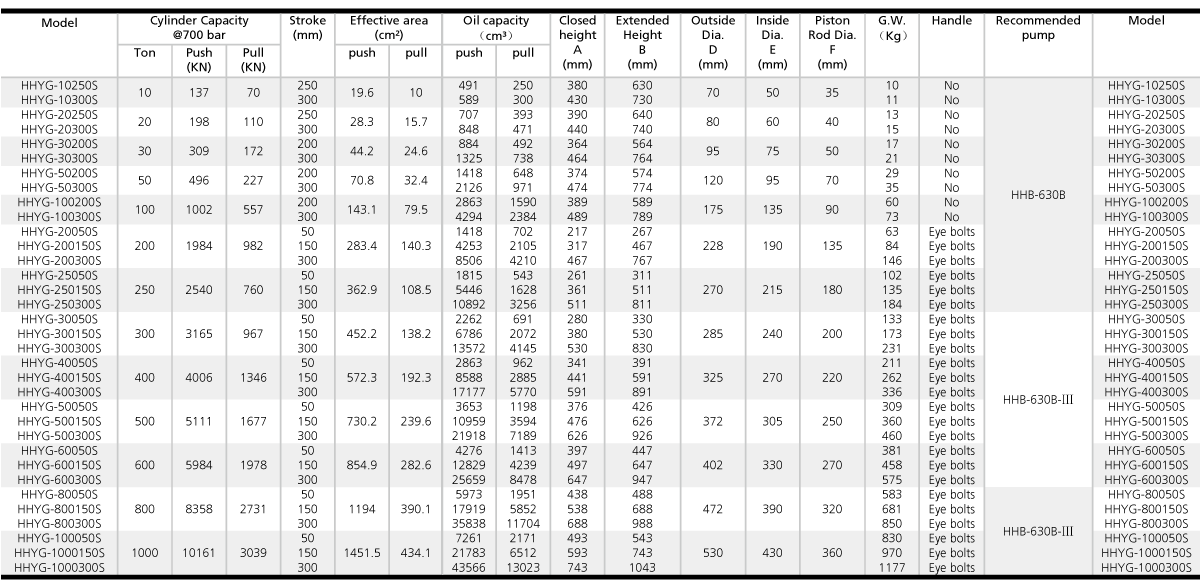

Parameters:
