Cylinder Capacity @700 bar (Ton): 200
Cylinder Capacity @700 bar (KN): 1984
Stroke (mm): 150
Effective area (cm²): 283.4
Oil capacity (cm³): 4408

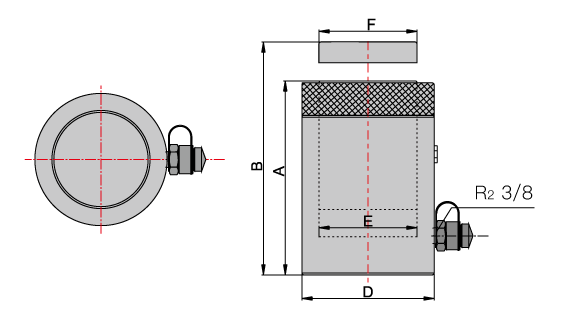

Closed height A (mm): 343
Extended height B (mm): 493
Outside Dia. D (mm): 238
Inside Dia. E (mm): 190
Piston Rod Dia. F (mm): 190
Locknut height (mm): 50
G.W (kg): 113.5
Handle: Eye Bolts
Recommended pump: HHB-630A

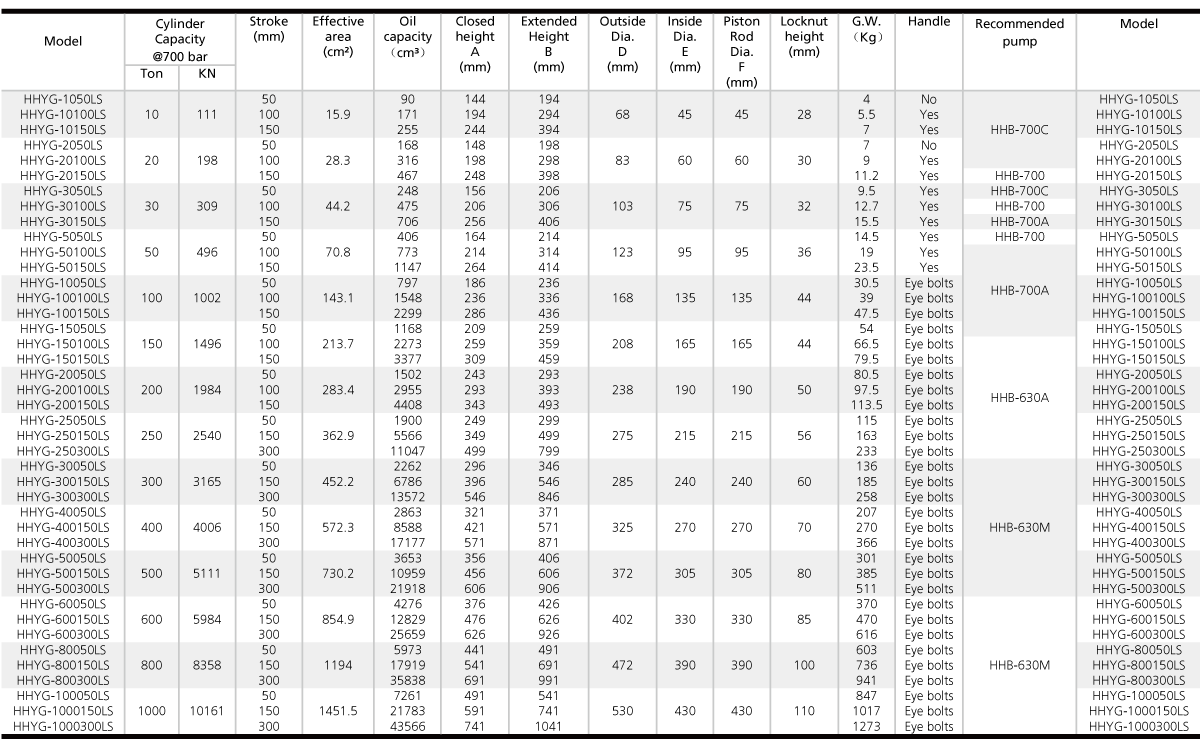

Parameters:
