Working pressure：700bar
Cylinder capacity: 50 Ton / 496 kN
Stroke: 16 mm
Effective area: 70.8 cm²
Oil capacity: 101 cm³

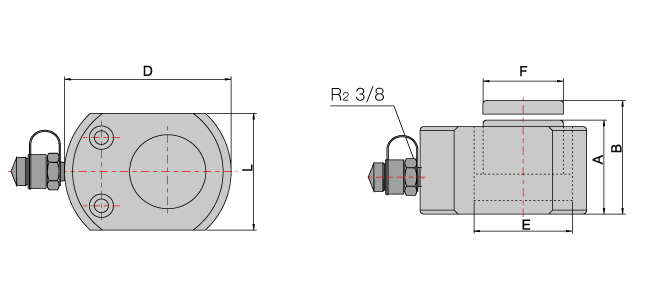

Closed height (A): 72 mm
Extended height (B): 88 mm
Outside diameter (D×L): 148 × 120 mm
Inside diameter (E): 95 mm
Piston rod diameter (F): 70 mm
G.W.: 7.8 kg
Recommended pump: HHB-700C

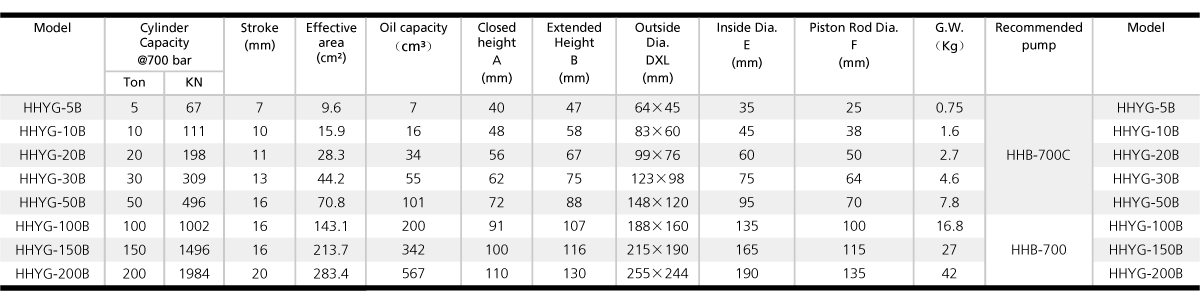

Parameters:
