Arch Size (W x H): 1250 x 450 mm
Strap Width: 5 mm, 6 mm, or 9 mm
Tension Range: 1 - 32 kg
Capacity
Up to 26 bundles/minute (single strap)
Up to 20 bundles/minute (double straps)
(Model: TP-702CCQ-L)
Minimum Bundle Size: 200 mm(W) x 20 mm(H) x 300 mm(L)
Bundle Weight: max 40 kg
Conveyor Speed: 15 – 60 M/minute
Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Siemens HMI (touch panel)
Light tower with low strap sensor
Foot pedal switch
Strapping cycle counter
Squaring plate extension for bundle length up to 1520 mm
Adjustable backstop
Video
Watch as reference: TP-702CCQ Corrugated 3-Side Bundle Squaring and Strapping System
Datasheet

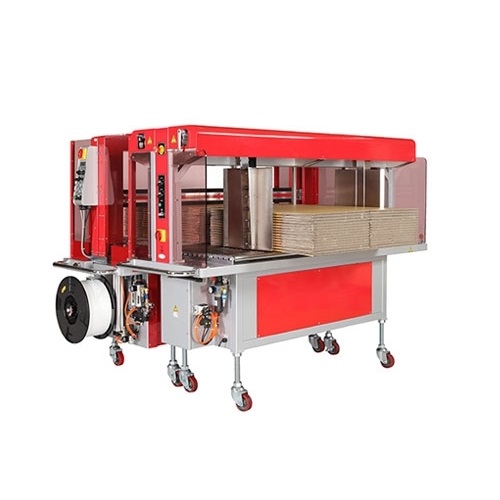

TP-702CCQ is built based on TP-702C high speed corrugated strapper combined with the 3-side squaring station CC-BSS. It carries all the innovative features of TP-702C. TP-702CCQ offers high strapping productivity with the most cost-effective bundle squaring solution for corrugated industry.
Features
Compact & robust strapping head
3-side squaring bundle control
Siemens PLC
Free access to strap guides (patents registered)
Hinged roller table
Auto strap ejector
Patented jammed-strap ejection device
Full-width pneumatic press
Multiple strap function
Variable conveyor speed
Adjustable pressure on press and squaring
