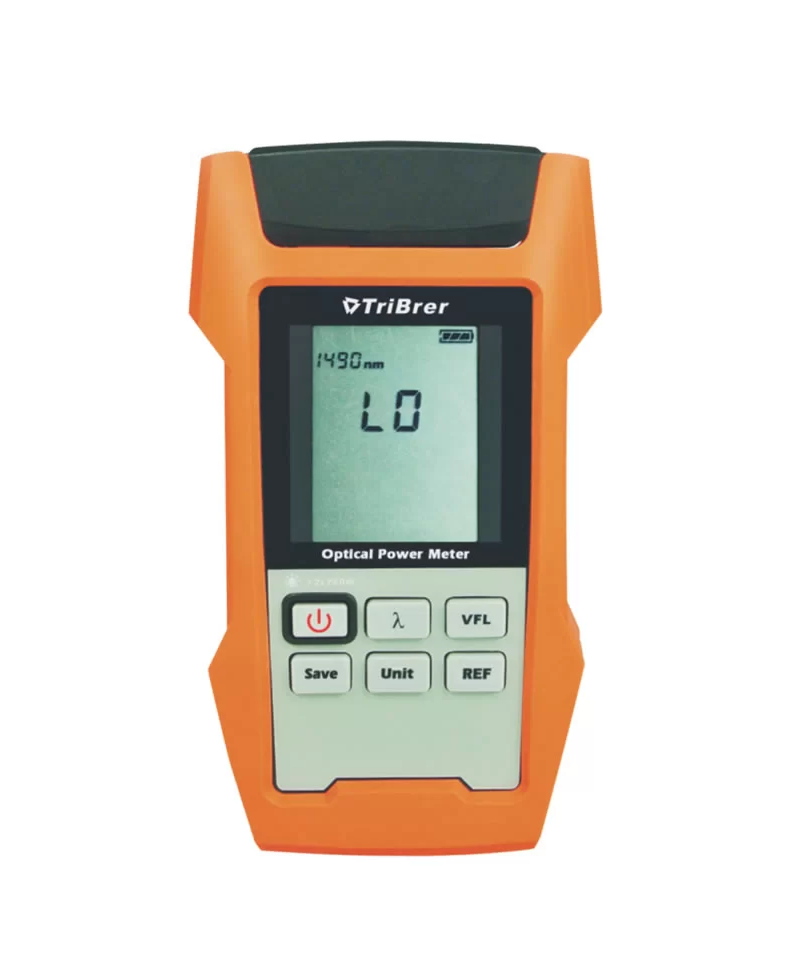

TriBrer AOP100C-V10 Optical Power Meter (+26~ -50dBm)

Display Range:

1310/1490/1550/1625: +26 ~ -50dBm

850/1300: +26 ~ -40dBm

Accuracy*: ± 0.2 dB

Calibrated Wavelengths: 850nm/1300nm/1310nm/1490nm/1550nm/1625nm

Resolution: 0.01dB

Connector: FC & 2.5mm UPP (option: SC, ST)

REF: Yes

Automatic Power Off: No operation in 10 minutes (canbe cancelled), Low battery energy

Build in VFL: 10mW

Data Storage: 1000

Battery Charge: For rechargeable battery only

Wave ID: Optional

Data Transfer: Optional

Real Time Monitor: Optional

Battery Life: Above 200 hours.

Power Supply: AA *3 batteries or AC/DC power supply adapter

*at 20±3℃, CW, with FC connector, -5dBm, SM fiber

GENERAL SPECIFICATIONS

Size(H*W*D): 170mm 97mm 38mm

Weight: About 380g

Storage Temperature: -20-+60 °C, < 90%RH

Operating Temperature: -10+50 °C, < 90%RH

Datasheet
