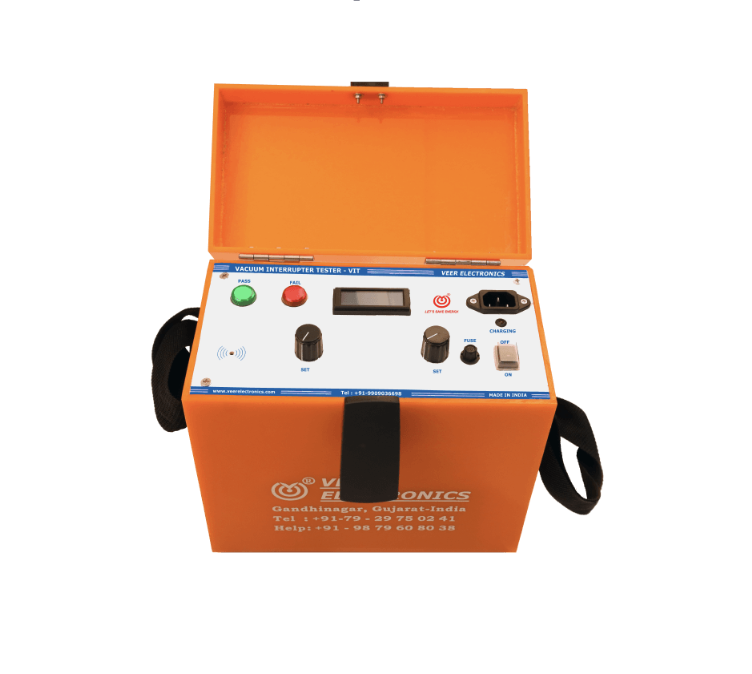

Veer Electronics VIT-30 Vacuum Interrupter Tester (3 kV – 30 kV)

Voltage Range: 3 kV – 30 kV

Accuracy: ±3% FSD

Charging Input: AC 230 V ± 10% @ 50 Hz / AC 110 V ± 10% @ 60 Hz (on request)

Charging Time: Approx. 15 hours

Duration of Operation: 36 hours in normal use after full charge

Battery: 12 V / 7 Ah Rechargeable Battery

Battery Life: Approx. 200 cycles / 2 years

Resolution: Range setting using potentiometer, 0.1 kV resolution

Display: 3-digit display

Dimensions (L×W×H): Approx. 265 × 145 × 255 mm

Weight of Instrument: Approx. 6.5 kg
