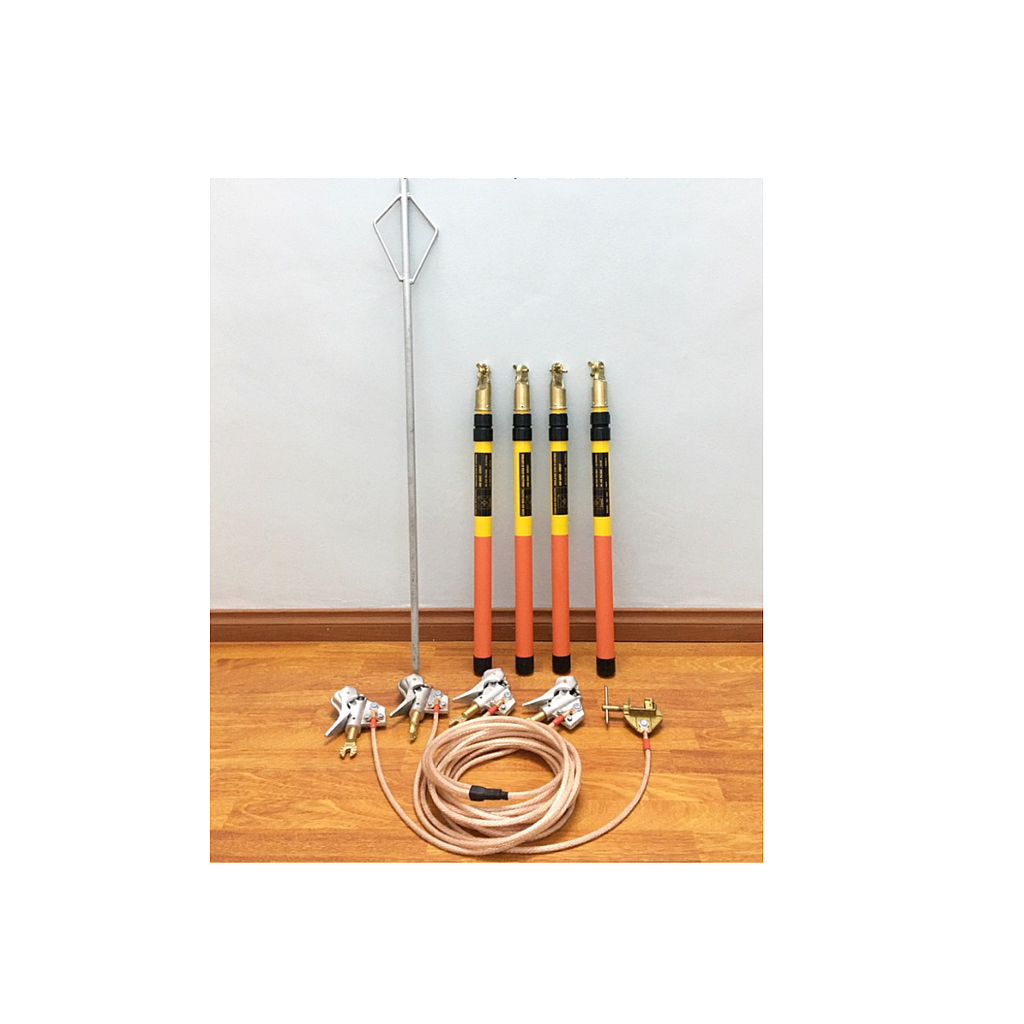

VIỆT NAM TĐ-10 Portable Low-Voltage Grounding Set (10kV)

Operating Voltage: 10,000 V

Type:

Branch Wires

Quantity: 4

Material: Pure copper

Cross-sectional area: 16 mm²

Extended length: 1.2 m

Main Wire

Quantity: 1

Material: Pure copper

Cross-sectional area: 16 mm²

Extended length: 8 m

Grounding Clamp

Quantity: 1

Material: Brass

Extended length: 30 cm

Grounding Rod

Quantity: 1

Material: Steel

Diameter: Ø14 mm

Extended length: 1.0 m

Insulating Stick with Integrated Grounding Clamp

Insulating Section:

Quantity: 4

Material: Bakelite

Diameter: Ø32 mm, Ø38 mm

Extended length: 0.7 m

Handle Section:

Quantity: 4

Material: Bakelite

Diameter: Ø38 mm

Extended length: 0.3 m
