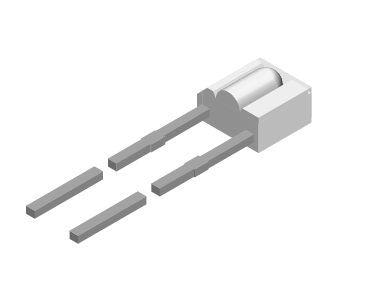

Vishay General Semiconductor TSSS2600 IR Emitters (IR LEDs) 950nm, TH-SL 2.6mW/sr, +/-25deg.

Width: 2.2 mm

Height: 3.4 mm

Length: 3.6 mm

Rise Time: 800 ns

Lens Shape: Rectangular

Wavelength: 950 nm

Unit Weight: 233.750 mg

Power Rating: 170 mW

Viewing Angle: 25 deg

Mounting Style: Through Hole

Lens Dimensions: 1.5 mm x 0.4 mm x 3.1 mm

Radiant Intensity: 25 mW/sr

Illumination Color: Infrared

If - Forward Current: 100 mA

Vf - Forward Voltage: 1.6 V

Vr - Reverse Voltage: 5 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 55 C
