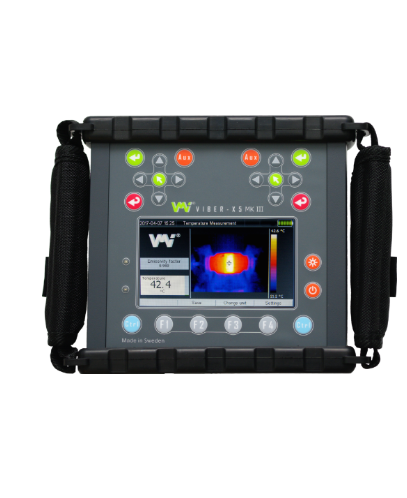

VMI-AB VIBER X5™ MKIII Standard Vibration Measurement Meter

Digital:

Processor: DSP Texas TMS320C6713B

Memory:

Storage: Micro SD card 4 GB

RAM: 128 MB

Flash Memory: 2 × 16 MB

ADC:

Resolution: 16-bit

Maximum Synchronous Sampling Rate: 192 KSPS

Display:

Size & Resolution: 5” Amorphous-TFT-LCD, 480 × 272 pixels

Input/Output Signals:

AC Input: Compatible with all standard ICP accelerometers (4mA/24V), velocimeters, or general-purpose AC sensors within the range of 0–30 V RMS (Default VMI sensors are automatically detected).

DC Input: 0–5 V

External Reference: 0.8–24 V

Built-in Sensors:

Temperature: -20 to 120 °C (Infrared)

Measurement:

Signal Processing: Direct, single or double integration, or differentiation (set up via software based on the selected sensor and user preferences). Capable of simultaneous 3-channel sampling.

Frequency Range: 0.5 to 32,000 Hz (Dependent on the sensor).

Amplitude Range: 0 to 80 g (Dependent on the sensor).

Accuracy:

0.01 g ± 1% without integration

0.1 mm/s ± 2% for single integration

2 µm ± 3% for double integration

FFT Lines: 25,600

Sampling Rate: Up to 131,072 Hz, depending on the selected frequency range (Simultaneous 3-channel sampling).

Power:

Battery: Smart Li-ion battery, 6.2 Ah with a fuel gauge

Usage Time: 12 hours (under normal operating conditions)

Charging Time: 4 hours (under normal charging conditions)

Temperature:

Operating: -20 °C to +70 °C (-4 °F to 158 °F)

Storage: -30 °C to +80 °C (-22 °F to 176 °F)
