Frequency Range:
• Thruline sensor selection from 100 KHz- 1.3 GHZ. (See Thruline sensor selection for complete details).
Connectors:
• Control box four sensor inputs (minidin 6 pin).
• Sensor SO-239 or N type connectors (specify when ordering).
• USB type connector for PC interface. • SWR Protection Relay with N/O and N/C contacts. Computer Requirements:
• PC running Microsoft OS XP, 7, 8, or 10.

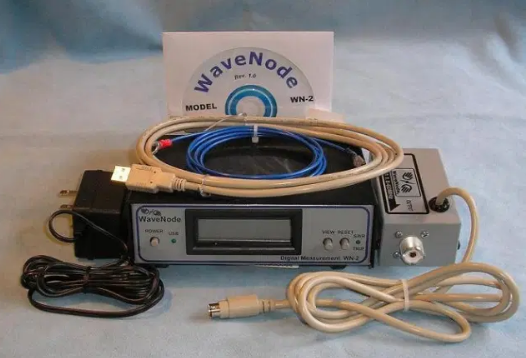

• USB port. Standard System Includes: Standalone Display: Peak, Average power and SWR, voltage and 0-20 amp current monitor on any of four thruline sensors. Also Wattmeter Control/Display unit.
• One RF sensor (specify when ordering)
• CDROM (software and USB driver)
• Wall transformer (120 ar 220/240 operation)
• USB cable with ferrite cores four auxiliary 0-20 volt levels on from rear panel connector.
Measurement Accuracy: Main Features: +/- 5%
Power Requirements:
• 11-16 VDC @ 200 ma. (With included power supply or from station +12 VDC supply)
• SWR protection relay (User selectable ports and level)
Software modulation Oscilloscope and Spectrum Analyzer. Tone generator, four analog inputs, four digital inputs and four digital outputs
. Dimensions:
• Simultaneous/synchronous detection
• Display Unit: 165 mm wide X 123 mm deep X 62mm high.
• Sensors: 102mm long X 39mm deep X 54mm high. of forward and reflected power and SWR on all four sensors.
• Voice and Tone announcing of power and SWR for visually impaired operation.
Options:
• RT1/2 Yaesu Rotator Controller.
• Sensor RFView port for external monitoring.
