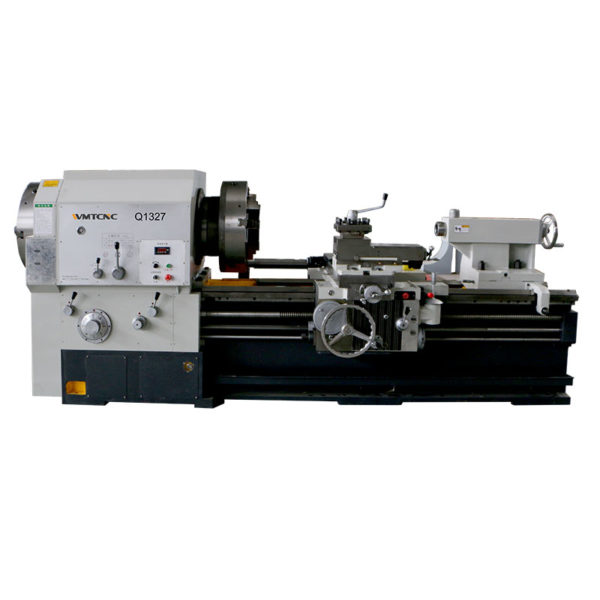

Max dia.swing over bed: 800mm
Max dia.swing over cross slide: 480mm
Max.length of work-piece: 1500mm
Width of bed: 750mm
Spindle bore: 280mm
Power of spindle motor: 15kW
Spindle speed: 20-300r/min VF2. steps
Z axis feed grade/range: 40/0.1-3mm/r
X axis feed grade/range: 40/0.05-1.5mm/r
Carriage rapid traverse speed: 3740mm/min
Cross slide rapid traverse speed: 1870mm/min
Metric thread grade/range: 52/1-224mm
Inch thread grade/range: 27/28-1T.P.I
Traverse of cross slide: 520mm
Max. Traverse of turret: 300mm
Tailstock quill travel: 300mm
Tailstock quill Dia./taper: Φ140/（MT5#）mm
Chuck: 4-jaw manual
Overall dimensions(L*W*H): 5000x2100x1600
Net weight: 4.2T
