Technical data
- Pressure:
Principle: piezoresistive semiconductor sensor
Measurement range: ±7.000 Pa
Resolution: 0,1~±900 Pa, thereafter 1 Pa
Accuracy: ±0,5 Pa or ±2,5 % of reading
- Volume flow (based on 1,013 hPa and 20 °C):
Principle: Hot film anemometer
Range: 0,0000~55,00 l/s
Resolution 0,0001~0,3000 l/s; 0,001~3,000 l/s; 0,01~3,00 l/s
Accuracy: ±0,0009 l/s or 5 % of reading
- General technical data:
Power Supply: 110~230 V, 50~60 Hz
Power consumption: max. 9 A
Operating temperature range: 5~40 °C
Storage temperature range: -20~50 °C
Weight: 9,5 kg
Scope of delivery

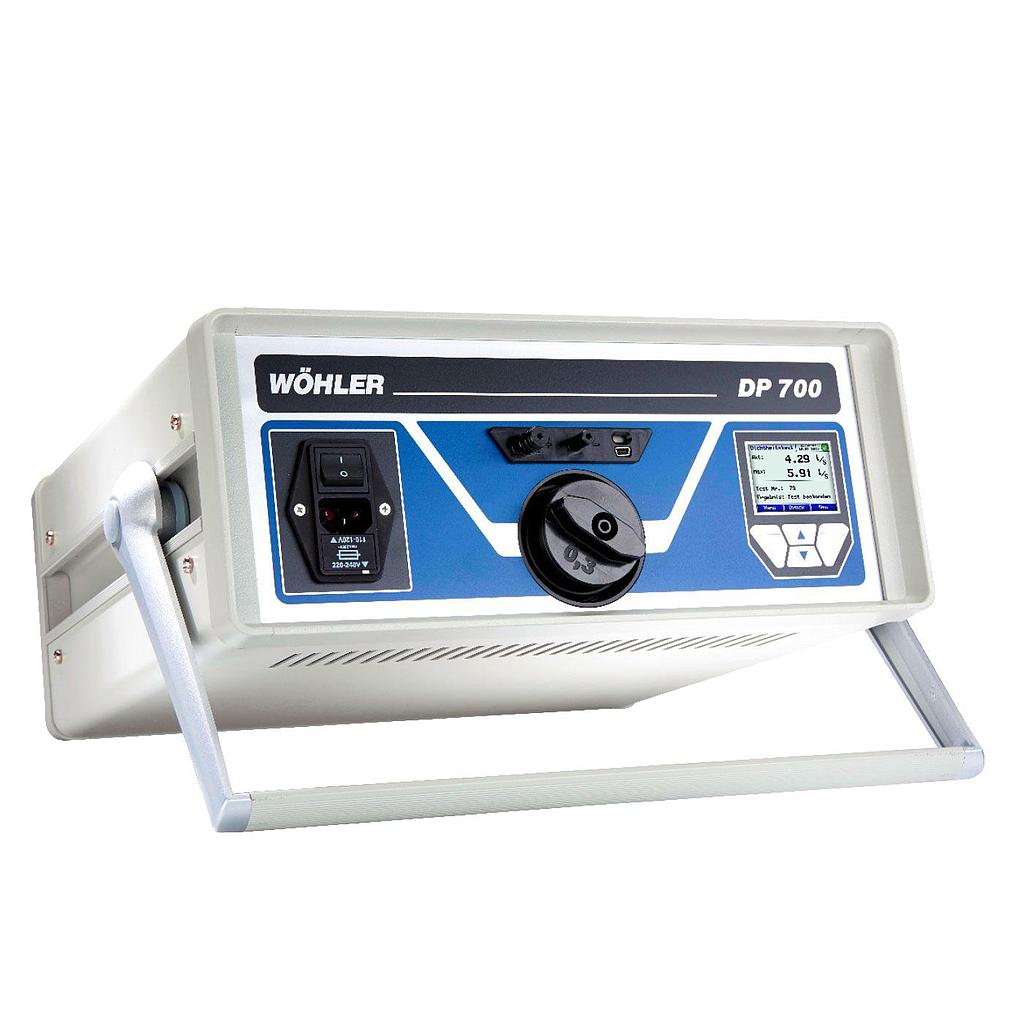

- Wöhler DP 700 Leakage Tester
- Air hose 3.75 m
- Air hose 4 m
- Pressure hose 10 m
- Calibration report
- Power cable 2.5 m
- Adapter 0.3, 2 brass nipples
- Hose connection for negative pressure
- Filter pad
- Silicone grease
- 2 transport cases
