Sample Station: 12
Specimen dimension: 64mm×64mm
Frequency of oscillation: 300±30 cycles/min
Max opening between clamps: 28.5±1.0mm
Min opening between clamps: 9.5±.0.5mm
Angle between gripping faces: 40 degree ±.1 degree
Radius of V edge: 6.4 ±0.5mm
Counter: LCD 0-999999
Dimension: 550mm×350mm×300mm
Weight: 64Kgs
Power Supply: AC 220V±10%, 50Hz/60Hz
Product Description:

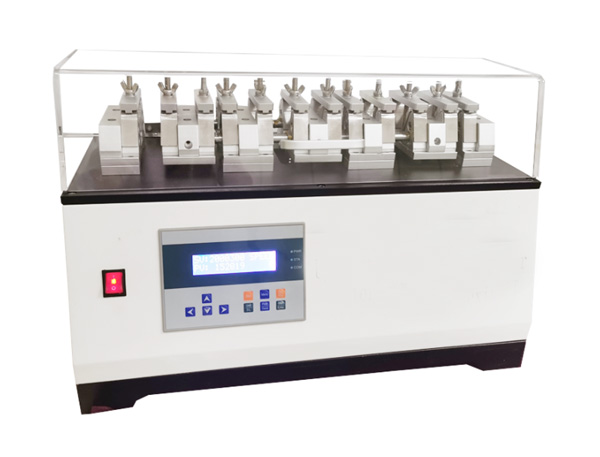

XHF-86 Vamp Flexing Tester is used to assess the tendency of all shoe upper materials, clothing leathers and upholstery coverings to crack or break as a result of flexing in wear. It is also suitable for testing leather, plastic coated fabrics, polymeric and woven fabrics.
Test Standards: ISO 20344, ISO 2023, IUP 39 - ISO 4643, UNI EN 13335 EN ISO 4642 annex BIUP 39
Product Features:
LED-SLD806 integrated display control box, menu operation mode
The position can be adjusted by jog, and the test speed can be adjusted
Mechanical parts are made of non-corrosive structural aluminum and stainless steel materials
Precision drive motor, stable operation and low noise
With counting and timing auto-stop function, the test can be automatically stopped by setting the test value
High-precision bearings are used for smooth and stable rotation and long active life
Protective door can protect the hands of the operator, automatic stop when door opened
