Max Peeling Strength: 1000N
Peeling cutter`s width: 20±0.2mm and 10±0.1mm
Peeling cutter`s moving down speed: 20±2mm/min, up and down speed can be adjustable
The distance between the locating road and pulling road: 50-70mm adjustable
Dial Gauge: 0-10mm, 0.001mm
Elevating range: 40mm
Dimension: 560×320×750 mm
Weight: 45Kgs
Power Supply: AC 220V±10%, 50Hz/60Hz
Product Description:

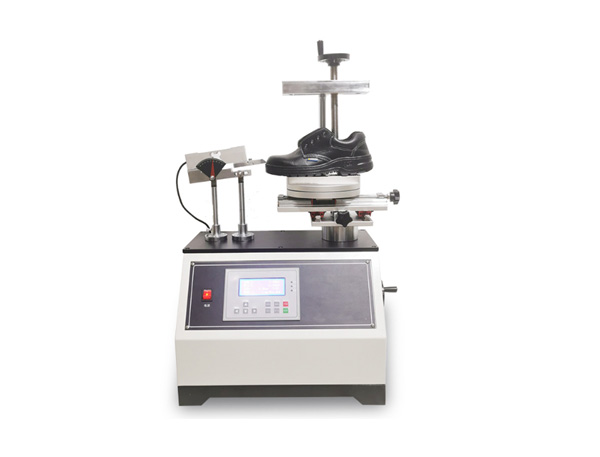

Shoes Peeling Strength Tester price is used to determine the peeling strength between the sole and upper of a shoe.by peeling blade,peel the upper of the shoe from its sole to get the peeling force,then based on the blade's width to calculate its peeling strength.
Test Standards: SATRA TM 404, ISO 20344
Product Features:
LED-SLD806 integrated display control box, menu operation mode
Mechanical parts are made of non-corrosive structural aluminum and stainless steel materials
Clamp distance is adjustable, 360 degree for different size shoes.
Alloy steel sensor, high precision, stable and durable
