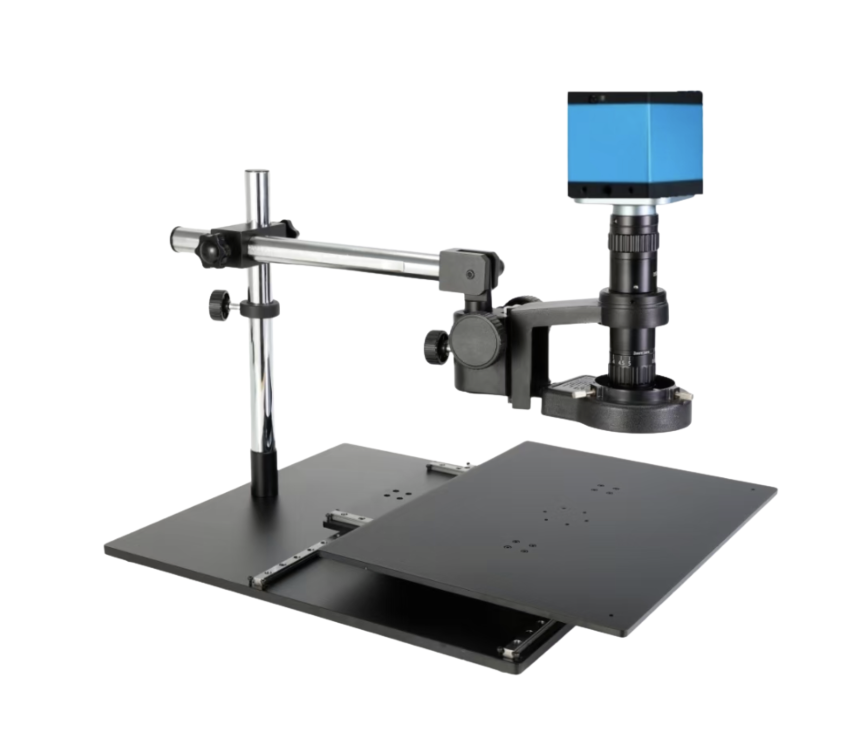

Xyc-tek MTM4K High-Resolution 4K Movable workbench Video Microscope (movable workbench)

Camera Resolution: 8.0 MP (3840 × 2160, 30 FPS)

Pixel Size: 2.0 µm × 2.0 µm

Optical Lens: 0.5X to 5.0X

Magnification: 28X to 180X

Illumination: LED

HDMI Output: 4K, 30 FPS

Interface: HDMI & USB

Functions: Photo/video capture, measurement, USB storage save, crosshair line generation

Optional Display: 24 inch, 35 inch, etc.

Table

Base Size: 380 × 430 mm

Column Height: 330 mm

Universal Arm Length: 340 mm

XY Stage Size: 380 × 280 mm

Rotary Table Size: 400 × 400 mm

XY Travel Range: 350 × 250 mm

Standard with 4K high-resolution Camera, ensure high-resolution Observe

With measure function, such length, angle , circle , distance…

With Universal bracket, Tilt the camera to observe the side of the object

With movable workbench , workbench can move XY direction & rotary

Can optional auto-focus , large view field camera
