Technical Parameters
The output range of built-in battery
Voltage:0～10V
Current:0～10A
The input range of characteristic testTouch LCD Digital Load And No-Load Losses Test Transformer Capacity Tester 1 power source
Voltage:0～750V
Current:0～100A
Accurate of test
Voltage, current:±0.2%
Power:±0.5%(CosΦ>0.1), ±1.0%(0.02<CosΦ<0.1)
Working temperature: -20℃～+60℃
Requirement of charger
Electric supply AC160V～265V
Adapter output 12.6V 1000mA
Insulation
⑴ Insulation resistance between capacity , voltage, current to enclosure ≥100MΩ
⑵ bear the 2kV power frequency (effective value) between the input power and machine enclosure, testing time is 1 minute.
Volume :32cm×25cm×12cm
Weight: 2.5KGS
Operation panel diagram

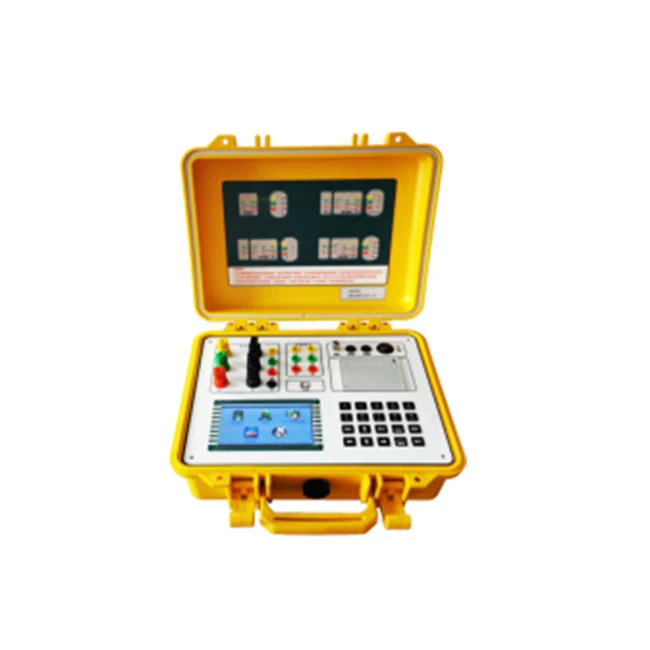

The operation panel is like figure 1 : including printer , LCD, keyboard, the wiring hole of capacity test , binding post of characteristic test and communication interface.
