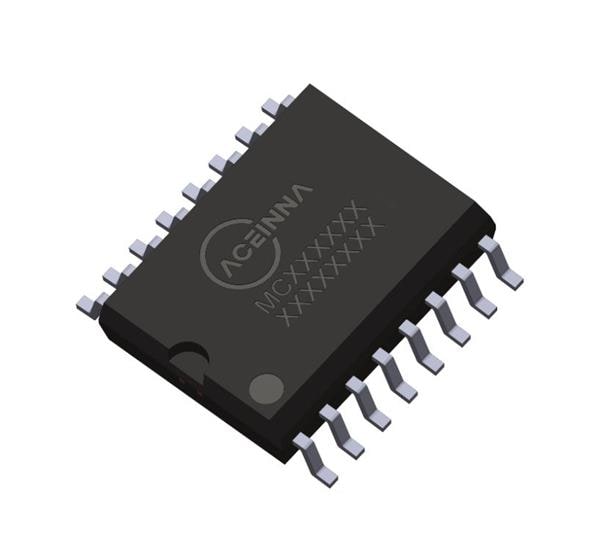

ACEINNA MCA1101-5-3 Fixed Gain 5 A, 3.3V, Fix gain, 1.5MHz BW, Galvanic Isolation. UL/IEC/EN60950-1 certified. SOIC-16
Manufacturer: ACEINNA Model: MCA1101-5-3 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 7.4 mm
Height: 2.24 mm
Length: 10.11 mm
Accuracy: 0.6 %
Output Type: Analog
Sensor Type: Current Sense
Unit Weight: 7.396 g
Response Time: 300 ns
Current Rating: 5 A
Moisture Sensitive: Yes
Supply Voltage - Max: 3.45 V
Supply Voltage - Min: 3.15 V
Operating Supply Voltage: 3.3 V
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
