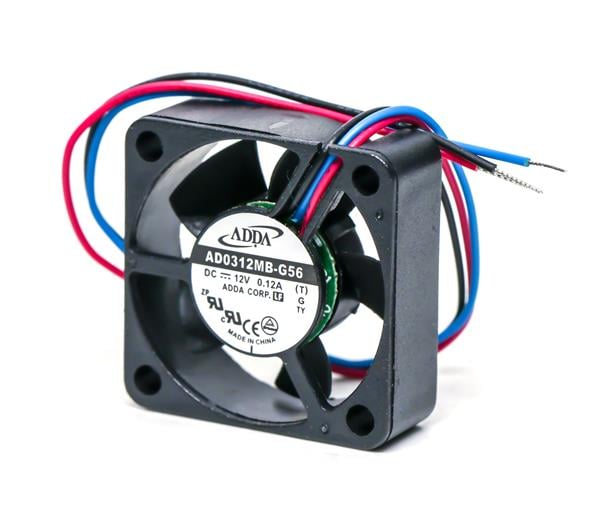

ADDA AD0312MB-G56-LF Axial DC Axial Fan, 30x30x10mm, 12VDC, Medium Speed, Ball Bearing
Manufacturer: ADDA Model: AD0312MB-G56-LF - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Depth: 10 mm
Noise: 27.9 dBA
Speed: 9000 RPM
Width: 10 mm
Height: 30 mm
Length: 30 mm
Airflow: 4.1 CFM (0.12 m3/min)
Features: Locked Rotor Sensor
Width - mm: 10 mm
Height - mm: 30 mm
Length - mm: 30 mm
Unit Weight: 11.688 g
Bearing Type: Ball
Current Type: DC
Power Rating: 1.44 W
REACH - SVHC: Details
Pressure Type: 0.148 inH2O
Housing Material: Glass Filled Polyester
Termination Style: Wire Leads - 3
Frame Dimensions - mm: 30 mm x 30 mm x 10 mm
Operating Supply Voltage: 12 VDC
