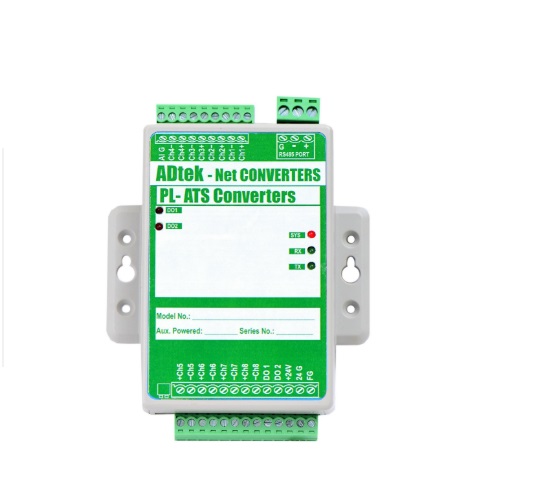

ADTEK AI TO RS485 Converter (0~10V/1~5V or 0~20mA/4~20mA)

  • Manufacturer: Adtek
    Model: PL-ATS
    • Request a Quotation Request a Quotation
  • Price (exclude tax) 6,791,500 VND
    Price (include tax) 7,470,650 VND
  •  Call for best price

     Hanoi city: (024) 35.381.269

     Danang city: (023) 63.747.711

     HCM city: (028) 38.119.636

CPU: 8051’s family microprocessor
Network interface: RS485
Protocol: Modbus/RTU, Modbus/ASCII, Console Mode
Analog Input: 8 AI
+ Input range: Voltage and Current changeable by dip-switch
- Voltage: 0~10V / 1~5V; input impedance 10MΩ
- Current: 0~20mA / 4~20mA; input impedance 250Ω
Digital output Open collect, 24V±10%, 0.5A
Resolution: 16 bits ADC
Accuracy: ± 0.2% at 25 ºC
Channels isolation: Non-isolated
Sampling time: 800 ms / 8 channels
Power Supply: DC 24V
Weight: 150g
APPLICATIONS
- Data collection
- Remote Sensors and Various Meters
- Access control terminals
- Environmental monitors
- Data loggers
