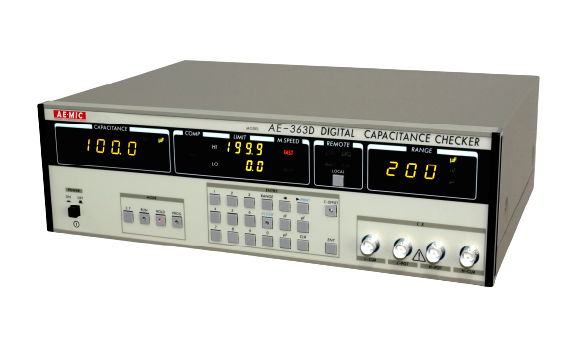

AE-MIC AE-363D Digital Capacitor Checker (200µF~20pF, 1kHz)
Manufacturer: AE-MIC Model: AE-363D Origin: Japan Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Measuring range: 20pF/200pF/2nF/20nF/200nF/2µF/20µF/200µF
Measuring method: 5 terminal measuring, parallel circuit
Frequency: 1kHz±0.1%, sine wave
Capacity cancel range: about 20pF
Temperature coefficient: within ±100ppm/℃
Comparator setting range: 1999 for both HI and LO
Time:
【remote start】1.9msec.~11.5msec.
【free running】5~14times/sec.
Operating conditions: temperature】0℃~+50℃, humidity】under 85%
Power supply: AC85V~265V, 50~60Hz, about 60VA
Outer Dimensions: 333(W)×99(H)×300(D)mm 【excluding protruding parts such as rubber legs, etc.】
Weight: about 4kg
Option: GP-IB interface
