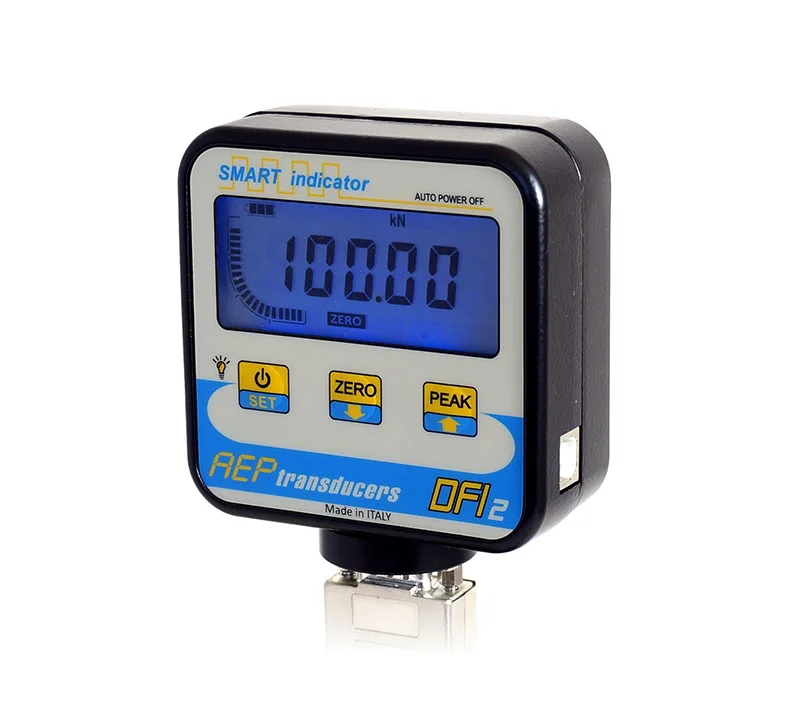

AEP Transducers DFI2 Digital Indicator Of Force And Weight

Accuracy Class: ≤± 0.020 %

Linearity Error: ≤± 0.015 %

Input Signal: from 0.5 to 4.5 mV/V

Connectable Load Cells: N° 1 350Ω or 700Ω (4 wires)

Load Cell Excitation: 3V ± 3%

Internal Resolution: 24 bit (2.000.000 div)

Standard Resolution (2Mv/V): ± 50.000 div

Readings Per Sec. (0 Filter) In Direct Reading: 10 Hz

Reference Temperature: +23 °C

Working Temperature Range: 0 / +50 °C

Storage Temperature Range: -10 / +60 °C

Relative Humidity: < 90 % non condensed

Temperature Effect (1°C):On Zero: ≤± 0.015%

Temperature Effect (1°C):On Full Scale: ≤± 0.005%

Custom Lcd Display

Character Height 13 Mm

Programmable Lighting From 1 To 60 Seconds

Blue Led Lighting

Bar Analog Indication

Prog. Measurement Resolution: 1, 2, 5, 10

Programmable Digital Filter: from 0 to 5

Zero And Auto Zero Function: Enabled up to 100% F.S.

Peak Function: COMPRESSION and TENSION

Auto Power Off Function: from 1 to 30 minutes

Menu Lock Function: Programming protection

Calibration With Full Scale: Compression and tension

Calibration With Mv/V Programming: from 0.5 to 4.5 mV/V

Calibration With Points Linearization: 5 points in comp. + 5 points in tension

Units Of Measurements : Kg – t – N – daN – kN - lb

Digital Output: USB 2.0

Continuous Transmission Of Measurements: 10 measure per second

Transmission On Request: on REQUEST or CONTINUOS

Maximum Distance: 5m

Internal Battery Power Supply: Li-Ion 1800mA/h 3.6V RECHARGEABLE

Rechargeable Battery: from USB port (5Vdc)

Autonomy: ~ 80 hours

Recharging Time: ~8 hours by PC or USB power supply

Degree Of Protection (En 60529): IP40

Metallic Enclosure: ALUMINUM

Weight: ~ 0.4kg
