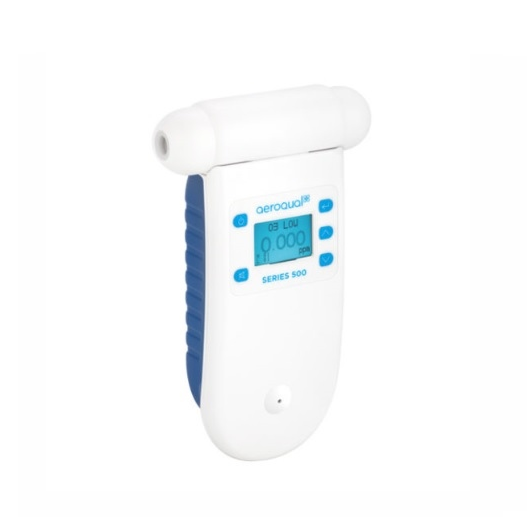

Aeroqual Series 500 Portable Air Quality Monitor

Measurement units: Gas: ppm or mg/m3 | Humidity: % | Temperature °C or °F

Reading functions: Instant, minimum, maximum, average

Sensor head: Active fan sampling to ensure high accuracy measurements, interchangeable, replaceable

Sensor head calibration: Zero and span calibration

Temperature & humidity sensor: Range -40°C to 124°C (-40°F to 255°F); Range 0 to 100 % RH

Environmental operating conditions: Temperature: -5°C to 45°C |Humidity: 0 to 95% non-condensing

Display status indicators: Battery, sensor, standby

Power supply: 12Vdc (power adaptor/charger supplied 100-250Vac)

Rechargeable battery: Lithium-ion 12Vdc 2700 mA.h

Enclosure material and rating: PC and ABS; IP20 and NEMA 1 equivalent

Size: (L x W x D) 195 x 122 x 54 (mm); 7⅝ x 4¾ x 2⅛ (in) (with sensor head)

Weight: <460g; <16oz (with sensor head and battery)

Approvals: Part 15 of FCC Rules; EN 50082-1: 1997; EN 50081-1: 1992

Analog output: 0-5V

Clock function: Real time

Digital interface: RS-232 to USB

Data logging: Up to 8,188 records (2706 incl. Temp/RH)

PC data logging (Windows): Software and data cable supplied. Link data to a specific location and monitor

Optional accessories: Temperature/ RH Sensor, Wall Bracket, Industrial Enclosure, Calibration Kit, Remote Sensor Kit, Cigarette Lighter Adaptor, Lithium Battery, Carry Case Small, Carry Case Large, IP41 Remote Sensor Kit
