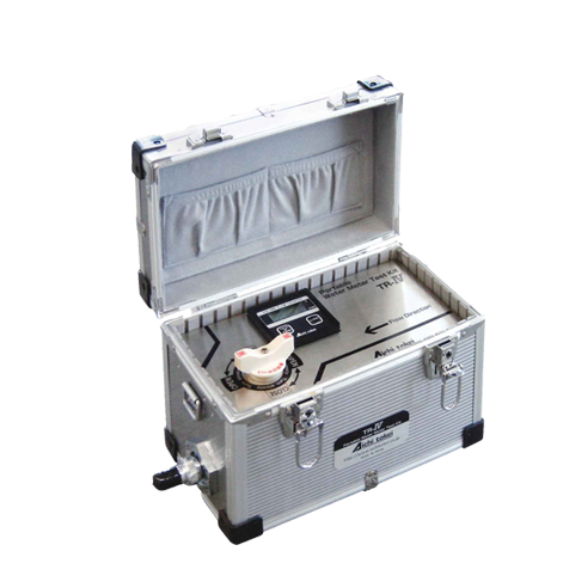

AICHI TOKEI TR-IV Portable water meter test kit (0.1~3.0m3/h)
Manufacturer: AICHI TOKEI Model: TR-IV Origin: Japan - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Flow rate range(m3/h): 0.1 - 3.0
Inspection flow rate: (standard) (m3/h): High: 1.0, Middle: 0.2, Low: 0.1
Error of repeatability ±0.5%
Capacity (at 0.1MPa) (m3/h) 4.9 (1.8: including hose)
Indicator
Accumulated flow amount
Display: LCD, direct read, 8 digits
Minimum scale (L): 0.01
Maximum indication amount (L): 999999.99
Other display functions Momentary flow rate (L/min), momentary flow rate hold, trip accumulation (accumulated amount reset)
Maximum pressured allowed (MPa): 0.75
Use water temperature range (°C): 0 - +30
Environmental temperature range (°C): -10 - +50
External dimensions: See the external dimensions diagram.
Weight (kg): Approximately 5.7 (without accessories)
