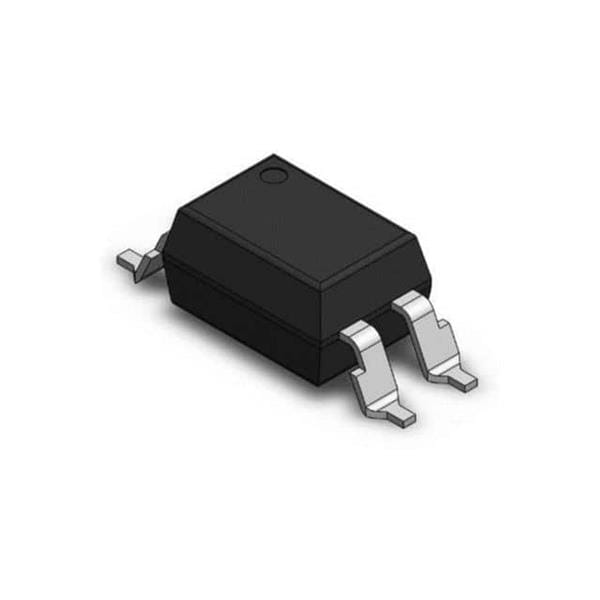

American Bright LED APC-817B1-SL Transistor Output Optocouplers DIP4, DC Input, Photo Transistor Coupler, CTR 130-260%, SL
Manufacturer: American Bright LED Model: APC-817B1-SL - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Fall Time: 4 us
Rise Time: 3 us
Output Type: Phototransistor
Mounting Style: SMD/SMT
Isolation Voltage: 5000 Vrms
Number of Channels: 1 Channel
If - Forward Current: 10 mA
Vf - Forward Voltage: 1.24 V
Vr - Reverse Voltage: 6 V
Current Transfer Ratio: 260 %
Pd - Power Dissipation: 200 mW
Maximum Collector Current: 50 mA
Current Transfer Ratio - Max: 260 %
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 55 C
Maximum Collector Emitter Voltage: 35 V
Maximum Collector Emitter Saturation Voltage: 200 mV
