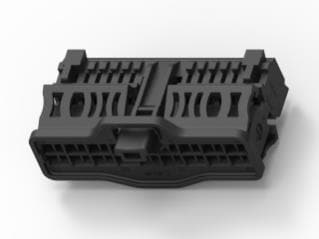

AMP Connectors - TE Connectivity 2141576-1 Housings 32POS NANO MQS TL PLUG HOUSING, CODE A
Manufacturer: AMP Connectors - TE Connectivity Model: 2141576-1 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Color: Black
Pitch: 1.8 mm (0.071 in)
Width: 14.8 mm
Gender: Receptacle (Female)
Height: 16.4 mm
Length: 33.1 mm
Application: Wire to Board/Device
Row Spacing: 5.9 mm
Unit Weight: 3.270 g
Contact Gender: Without Socket Contacts
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Voltage Rating: 12 VDC
Wire Gauge Max: 22 AWG
Wire Gauge Min: 26 AWG
Housing Material: Polybutylene Terephthalate (PBT)
Wire Gauge Range: 22 AWG to 26 AWG
Locking Mechanism: On the terminal
Termination Style: Crimp
Number of Positions: 32 Position
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
