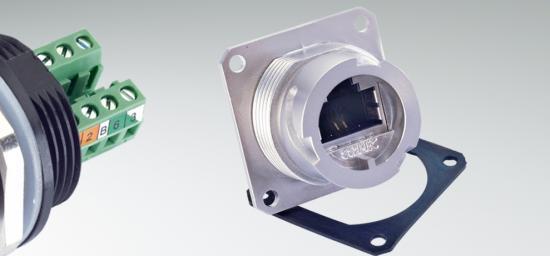

Amphenol CONEC 17-111084 Circular RJ45-IP67 Cat.5e SqFlZnDcTBSHLNoHDWSl
Manufacturer: Amphenol CONEC Model: 17-111084 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Gender: Jack (Female)
IP Rating: IP67
Shielding: Shielded
USOC Codes: RJ45
Configuration: 1x1
Current Rating: 1.2 A
Mounting Style: Panel Mount
Voltage Rating: 100 V
Contact Plating: Gold
Number of Ports: 1 Port
Contact Material: Phosphor Bronze
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Performance Category: Cat 5e
Insulation Resistance: 500 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Number of Positions / Contacts per Port: 8P8C
