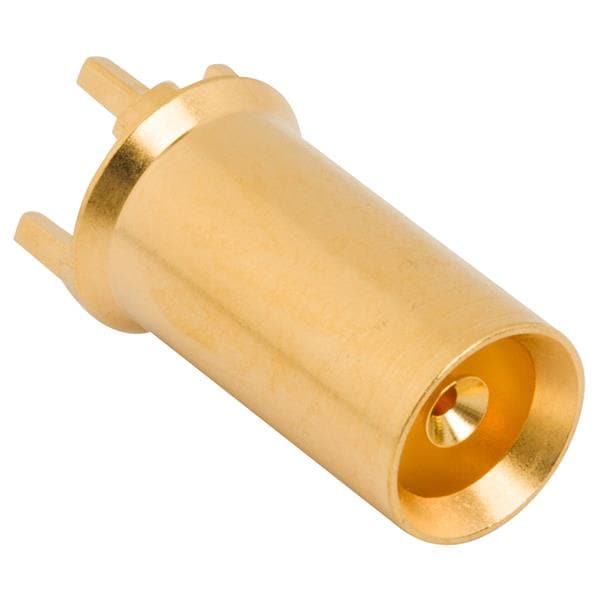

Amphenol RF 920-266J-51P PCB Connectors AFI Jack PCB Thru- Hole 9.71mm
Manufacturer: Amphenol RF Model: 920-266J-51P - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Gender: Jack (Socket)
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: AFI
Body Style: Straight
Body Finish: Gold
Orientation: Straight
Unit Weight: 2.690 g
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 100
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 6 GHz
Termination Style: Solder Pin
Coupling Mechanism: Slide On
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
