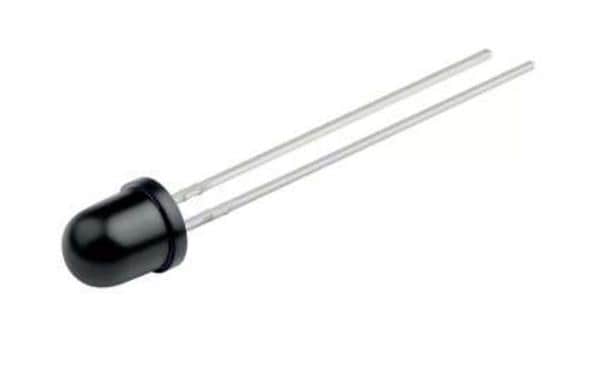

ams OSRAM SFH 314 FA Silicon NPN Phototransistor PHOTOTRANSISTOR
Manufacturer: ams OSRAM Model: SFH 314 FA - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 5.9 mm
Height: 6.9 mm
Length: 5.9 mm
Wavelength: 870 nm
Unit Weight: 300 mg
Dark Current: 200 nA
Light Current: 2.5 mA
Qualification: AEC-Q100
Mounting Style: Through Hole
Peak Wavelength: 870 nm
Lens Color/Style: Black
Pd - Power Dissipation: 200 mW
Half Intensity Angle Degrees: 40 deg
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
Maximum On-State Collector Current: 50 mA
Collector- Emitter Voltage VCEO Max: 70 V
Collector-Emitter Breakdown Voltage: 70 V
Collector-Emitter Saturation Voltage: 150 mV
