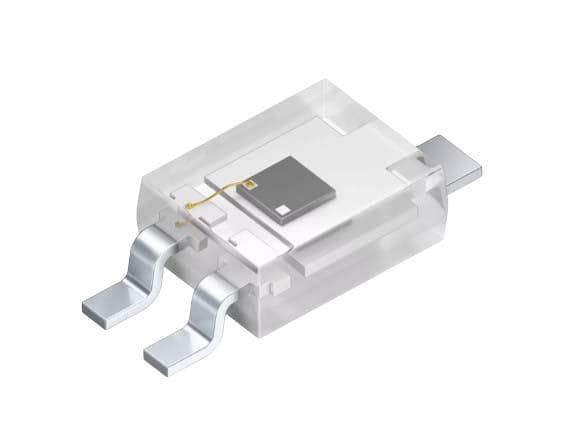

ams OSRAM SFH 3410-2/3-Z Chip PHOTOTRANSISTOR (ALS) SMT SMART DIL
Manufacturer: ams OSRAM Model: SFH 3410-2/3-Z - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 2.7 mm
Height: 1.05 mm
Length: 2.1 mm
Wavelength: 570 nm
Unit Weight: 12 mg
Dark Current: 50 nA
Light Current: 16 uA
Qualification: AEC-Q100
Mounting Style: SMD/SMT
Peak Wavelength: 570 nm
Moisture Sensitive: Yes
Half Intensity Angle Degrees: 60 deg
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
Maximum On-State Collector Current: 20 mA
Collector- Emitter Voltage VCEO Max: 5.5 V
Collector-Emitter Breakdown Voltage: 5.5 V
Collector-Emitter Saturation Voltage: 100 mV
