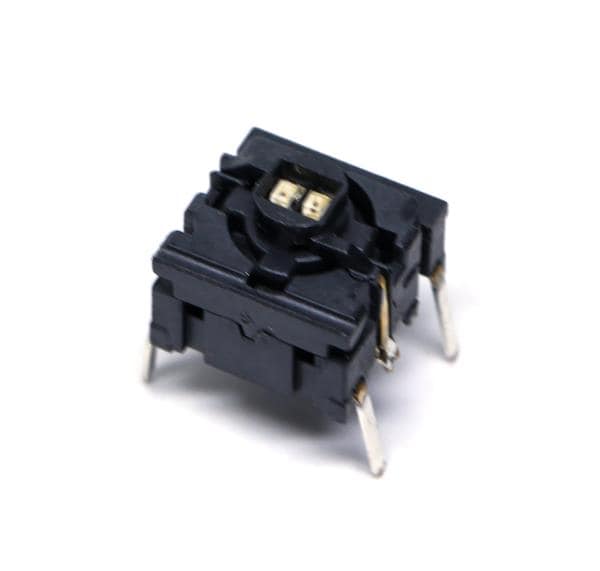

APEM 5GTH9652242 Tactile Switches Switch TH 6.5N. Green Led
Manufacturer: APEM Model: 5GTH9652242 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Life: 10000000 Cycle
Width: 10 mm
Height: 8.5 mm
Length: 10 mm
Travel: 1 mm
Actuator: Round
IP Rating: IP67
Lamp Type: LED
Illuminated: Illuminated
Unit Weight: 800 mg
Contact Form: SPST
Power Rating: 75 mW, 60 mW
Current Rating: 50 mA
Mounting Style: Through Hole
Contact Plating: Silver
Ground Terminal: No
Operating Force: 6.5 N
Switch Function: OFF - (ON)
Actuator Material: Polyphenylene Sulfide (PPS)
Termination Style: Solder Pin
Voltage Rating DC: 24 VDC
Illumination Color: Green, Yellow
Mounting Direction: Straight
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
