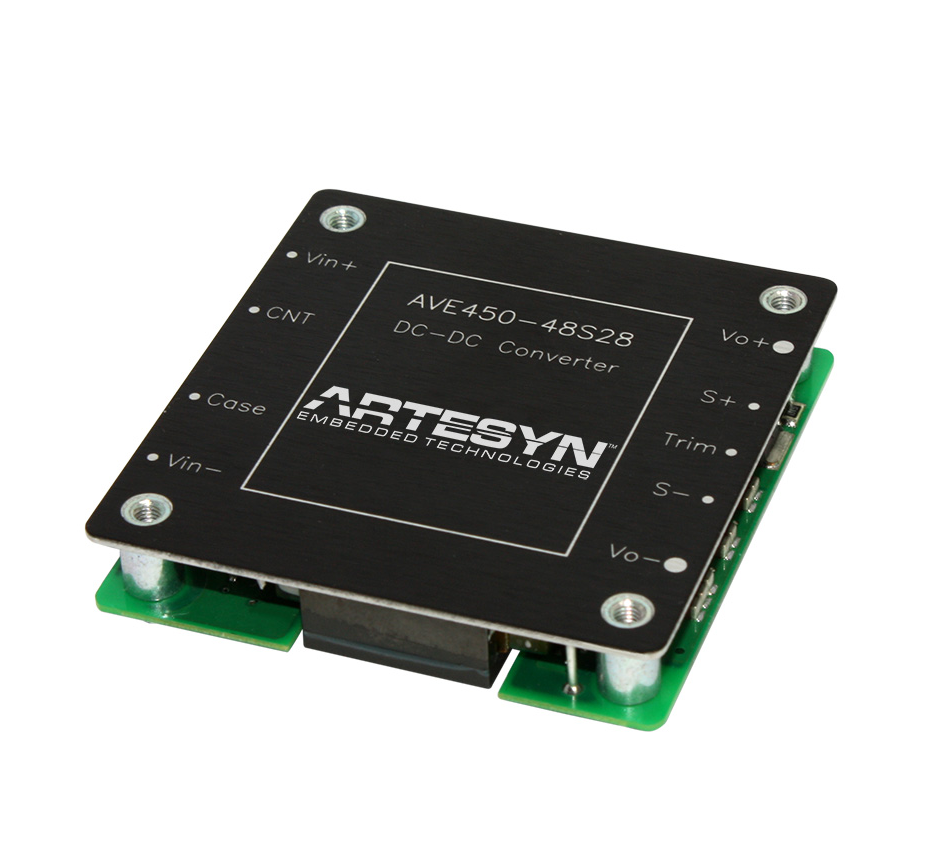

Artesyn AVE450B-48S28P-6L Half-Brick Isolated DC-DC Converter (28V; 16A; 450W)
Manufacturer: Artesyn Model: AVE450B-48S28P-6L - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Input range: 36 - 75 Vdc
Efficiency: 94.5%
Voltage: 28 V +/-1%
Line regulation: +/- 0.05%
Load regulation: +/- 0.1%
Noise/ripple: 200 mV
I/O isolation: 1500 VDC min
Operating ambient temperature range: -40 °C to +85 °C
Storage temperature: -55 °C to +125 °C
Humidity: 5% to 95% (non-condensing)
Output voltage: 28 V @ 16 A
Power: 450 W
