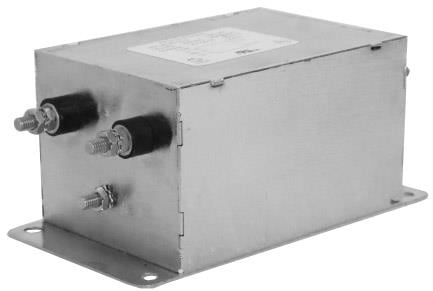

Astrodyne TDI RP125-30-1-S Power Line Filters High Performance Single Stage Power Line Filter
Manufacturer: Astrodyne TDI Model: RP125-30-1-S - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 58 mm
Height: 46 mm
Length: 94 mm
Approvals: cURus, EN60939
Filter Type: 1-Phase Single-Stage Filter
Unit Weight: 408.233 g
Current Rating: 30 A
Mounting Style: Chassis Mount
Voltage Rating: 250 VAC
Leakage Current: 90 uA
Termination Style: Stud
Operating Frequency: 50 Hz, 60 Hz
Maximum Operating Temperature: + 40 C
Minimum Operating Temperature: - 25 C
