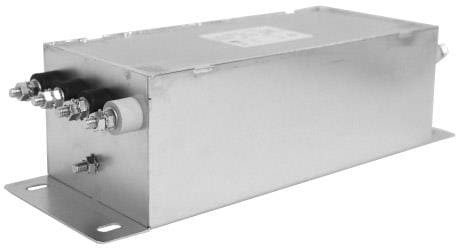

Astrodyne TDI RP420-200-10-S Power Line Filters 3-Phase WYE Dual Stage Power Line Filter
Manufacturer: Astrodyne TDI Model: RP420-200-10-S - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 168 mm
Height: 114 mm
Length: 330 mm
Approvals: CSA, EN60939, UR
Capacitance: 0.01 uF
Filter Type: 3-Phase WYE Two-Stage Filter
Unit Weight: 8.618 kg
Current Rating: 200 A
Mounting Style: Chassis Mount
Voltage Rating: 480 VAC
Leakage Current: 1.8 mA
Termination Style: Stud
Operating Frequency: 50 Hz, 60 Hz
Maximum Operating Temperature: + 50 C
Minimum Operating Temperature: - 25 C
