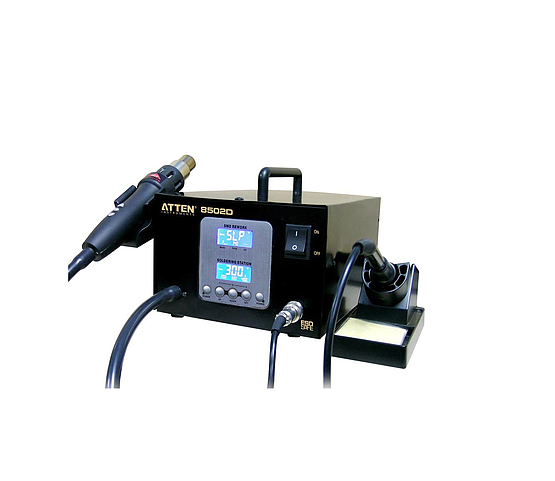

ATTEN AT8502D 2 in 1 Lead free rework station
Manufacturer: ATTEN Model: AT8502D Origin: China - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
|
Model
|
AT8502D
|
Intelligent lead-free rework station
|
|
Total power
|
About 700W(max)
|
Heating:800(max)pump(diaphragh):40W
|
|
Range for temperature
controlling
|
Hot Air Rework Station
|
100-500°C
|
|
Soldering Station
|
200-480°C
|
|
|
Temperature unit
|
°C/℉
|
Convertible
|
|
Temperature controlling
stability
|
Static
|
2°C
|
|
Temperature controlling
accuracy
|
Static
|
10°C
|
|
Calibration range
|
Clesius
|
50°C ~-50°C
|
|
Fahrenheit
|
-58℉~122℉
|
|
|
Setting storage(3 groups)
|
Rework Station
|
1.200°C,40 2.300°C 60 3.400°C 80
|
|
Soldering Station
|
1.200°C 2.300°C 3.400°C
|
|
|
Range of air volume
|
Rework Station
|
020-100 level
|
|
Dormancy and standby
|
Rework Station
|
Stopping heating,air-blowing delay and then be in the condition of dormancy
|
|
Cold Air
|
Rework Station
|
Air-blowing made by the machine
|
|
Malfunction alert
|
Heating Elements
|
Displaying H-E
|
|
Sensor
|
Displaying S-E
|
|
|
Shutdown
|
Shutdown in the
normal condition
|
Cold air delay shutdown,power off
|
