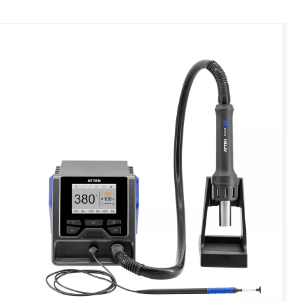

ATTEN GT-1028 2-Tools Intelligent Rework Station with Vacuum pick-up tool (100℃~500℃, 1300W)

Rated working voltage: AC 230V ±10% 50Hz /（ 110V±10% 60Hz）

Rated Power: 200W

Max Power: 1300W

Heater Power: 1300W

Temperature range: 100℃~500℃ / 212℉-932℉

Air volume range: 1%~100%

Timing time: 10~900s（Can be turn off）

Temperature unit: ℃/℉， ℃ by default

Air flow: 120L / Min（Max）

Multiple alarm and protection functions: Heater open circuit alarm, sensor fault alarm, zero crossing signal alarm, SCR damage alarm, over-temperature protection alarm

Password protection function: 3 groups shortcut temperature

Password protection function: Available (Off by default)

Alarm function: Available (On by default)

User temperature compensation: ±50℃ / ±90℉

Multiple language for user interface: Chinese/English

Heating power display: 5 dynamic power bars

Temperature adjustment step: Long press for 10 units adjustment, short press for 1 unit adjustment

Air volume adjustment step: Long press for 2 units adjustment, short press for 1 unit adjustment

Vacuum pressure: -80Kpa

Rapid temperature / air volume / time:3 groups of temperature/air volume/time, can be called quickly

Working conditions: Temperature 0℃～40℃ Relative humidity＜85%RH

Dimension:315 (L) x 252 (W) x 127 (H) mm

Weight (N.W.): Approx. 4.78Kg

Packing List

GT-1028 host: 1pc

Power cord: 1pc

Hot air gun handle: 1pc

Hot air gun nozzle: 3pcs

Hot air gun holder: 1pc

User manual: 1pc

Vacuum pen (included tool box): 1pc

Bent suction nozzle: 2pcs

Straight suction nozzle: 2pcs

4.5mm suction disc *3 , 6.5mm suction disc *3, 9.5mm suction disc *3, 13mm suction disc *3: 12pcs

Certificate: 1pc
