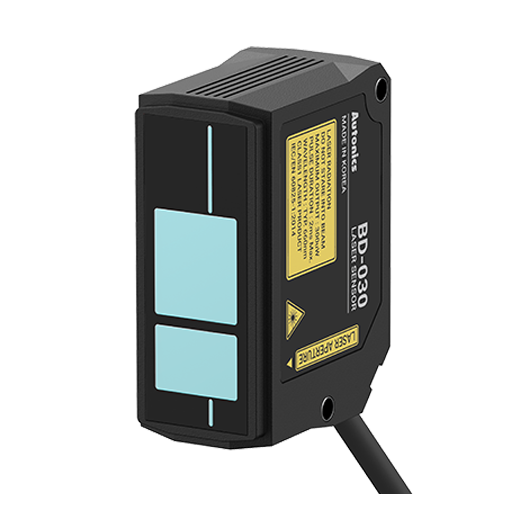

Autonics BD-030 Laser Displacement Sensors (20~40mm, 0.1%F.S)

Spot diameter:

Near (25mm): Approx. 290×790 ㎛

Reference (30mm): Approx. 240×660 ㎛

Far (35mm): Approx. 190×450 ㎛

Resolution: 1㎛

Reference distance: 30mm

Max. measurement range: 20 to 40mm

Linearity: 0.1% F.S. (in 25 to 35mm)

Details

Datasheet
