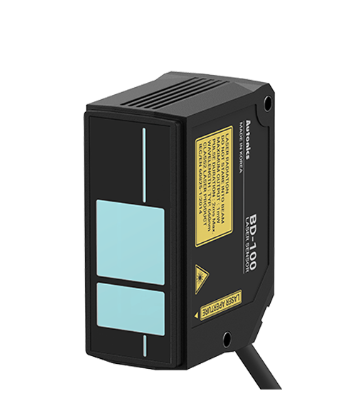

Autonics BD-100 Laser Displacement Sensors (70~130mm, 0.15%F.S)

Spot diameter:

Near (80mm): Approx. 480×1870 ㎛

Reference (100mm): Approx. 410×1330 ㎛

Far (120mm): Approx. 330×950 ㎛

Resolution: 4㎛

Reference distance: 100mm

Max. measurement range: 70 to 130mm

Linearity: 0.15% F.S. (in 80 to 120mm)
