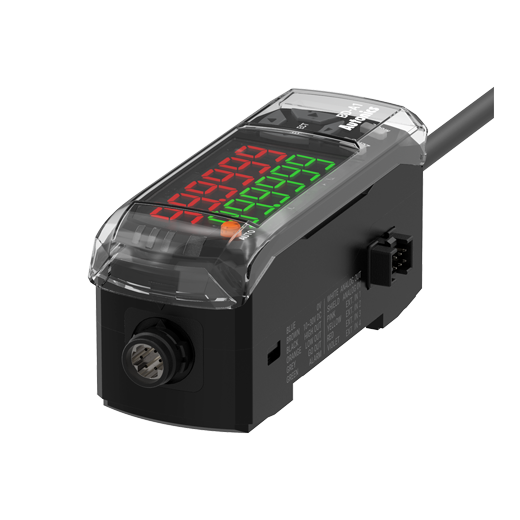

Autonics BD-A1 Laser Displacement Sensors (Sensor Head and Amplifier Unit) (2800mW, 4-20mA)

Power consumption : Max. 2800mW (30VDC)

Control input : No-voltage input

Judgment output : NPN or PNP open collector output (Load current: Max. 100mA)

Alarm output : NPN or PNP open collector output (Load current: Max. 100mA)

Analog voltage output : -5 - 5 V, 0 - 5 V, 1 - 5 V (resistance: 100 Ω, ± 0.05% F.S., at 10 V)

Analog current output : ) 4 - 20 mA (load resistance: ≤ 350 Ω, ± 0.2% F.S., at 16 mA)

Residual voltage : NPN: Max. 1.5V, PNP: Max. 2.5V
