Bakon U103-A Wireless Intelligent Multifunctional Grounding Monitoring (0-1000mV)
Manufacturer: Bakon Model: U103-A Origin: China Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Power supply: Input: DC9V/1A
Strap monitoring resistance: 750K-45MΩ
Equipment monitoring resistance: 1-50Ω
Table mat monitoring resistance: 10-100MΩ
Leakage voltage monitor range: 0-1000mV
Operating env: Anti-Static Environment , -5-45°C
Max power: 3W
Indicator lights status: Normal: Green ; Anomalous: Red ; Standby: Orange
Volume: 129(L)x 65(W)x 40(H) mm
Weight: ≈0.39KG
Details

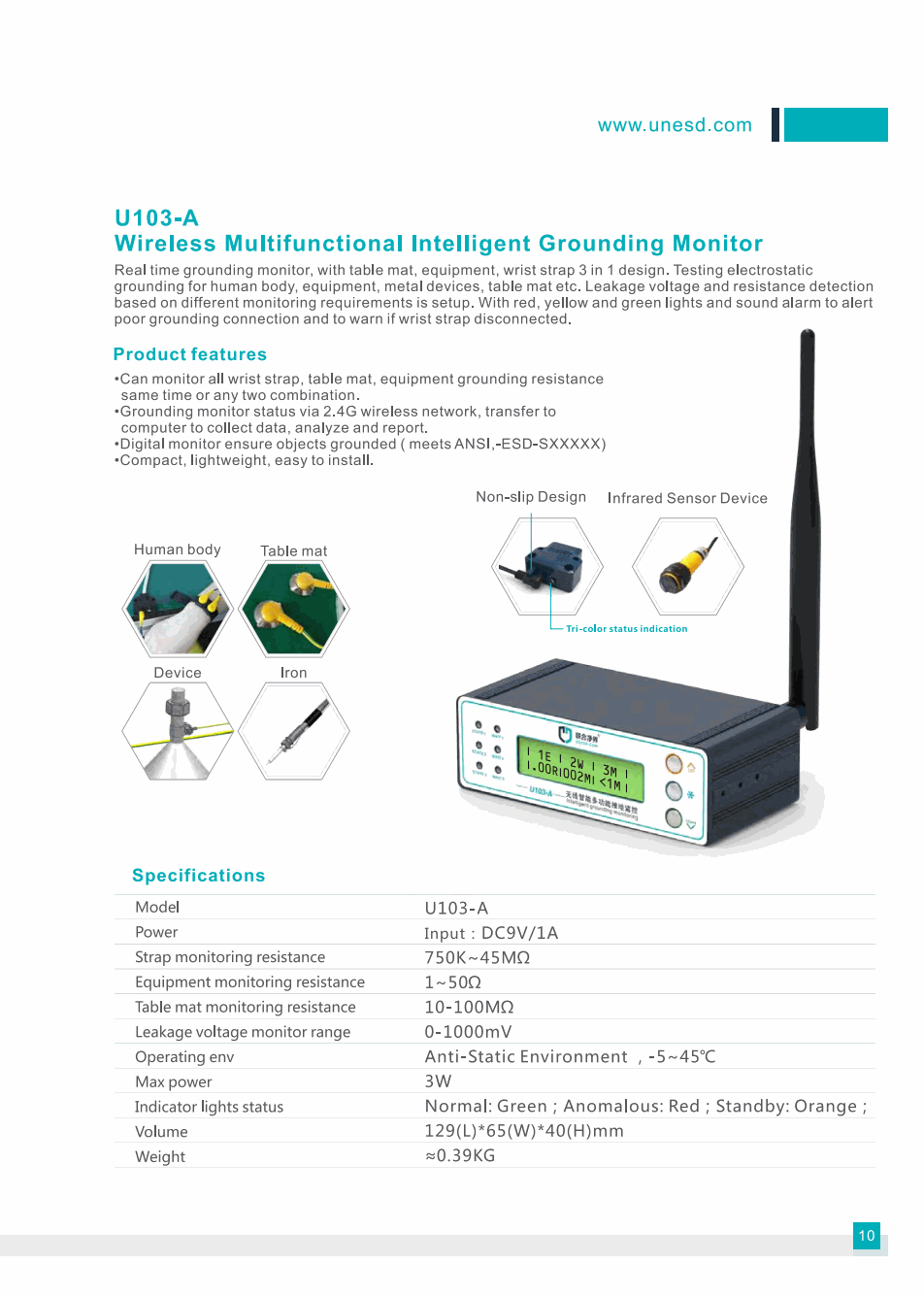

Datasheet
